Description

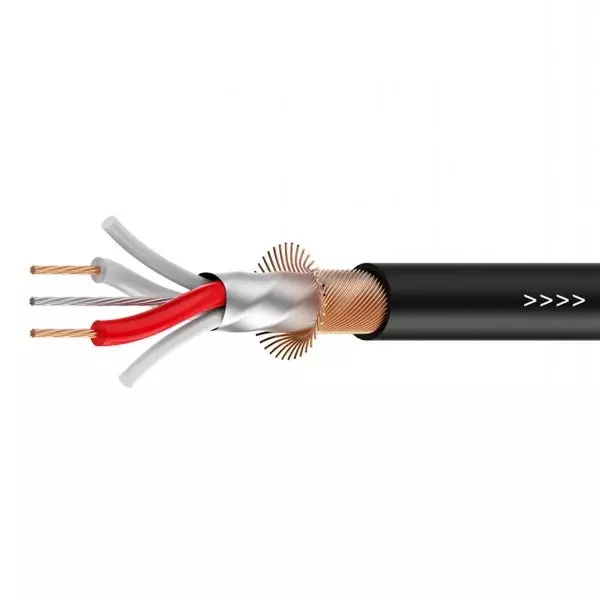

Optimum shielding with dense copper spiral shielding + AL/PT-foil. Small diameter, thus suitable for use with RCA-connectors.
FEATURES:
- Studio patch cabling
- Control of lighting, scanner units, and displays
- Permanent installation
SPECIFICATIONS:
- Jacket, diameter: PVC 5,0 mm
- AWG: 24
- No. of inner conductors: 2 x 0,22 mm²
- Copper strand per conductor: 7 x 0,20 mm
- Conductor insulation: PE 1,70 mm
- Drain Wire: Tin plated copper 7 x 0,18 mm

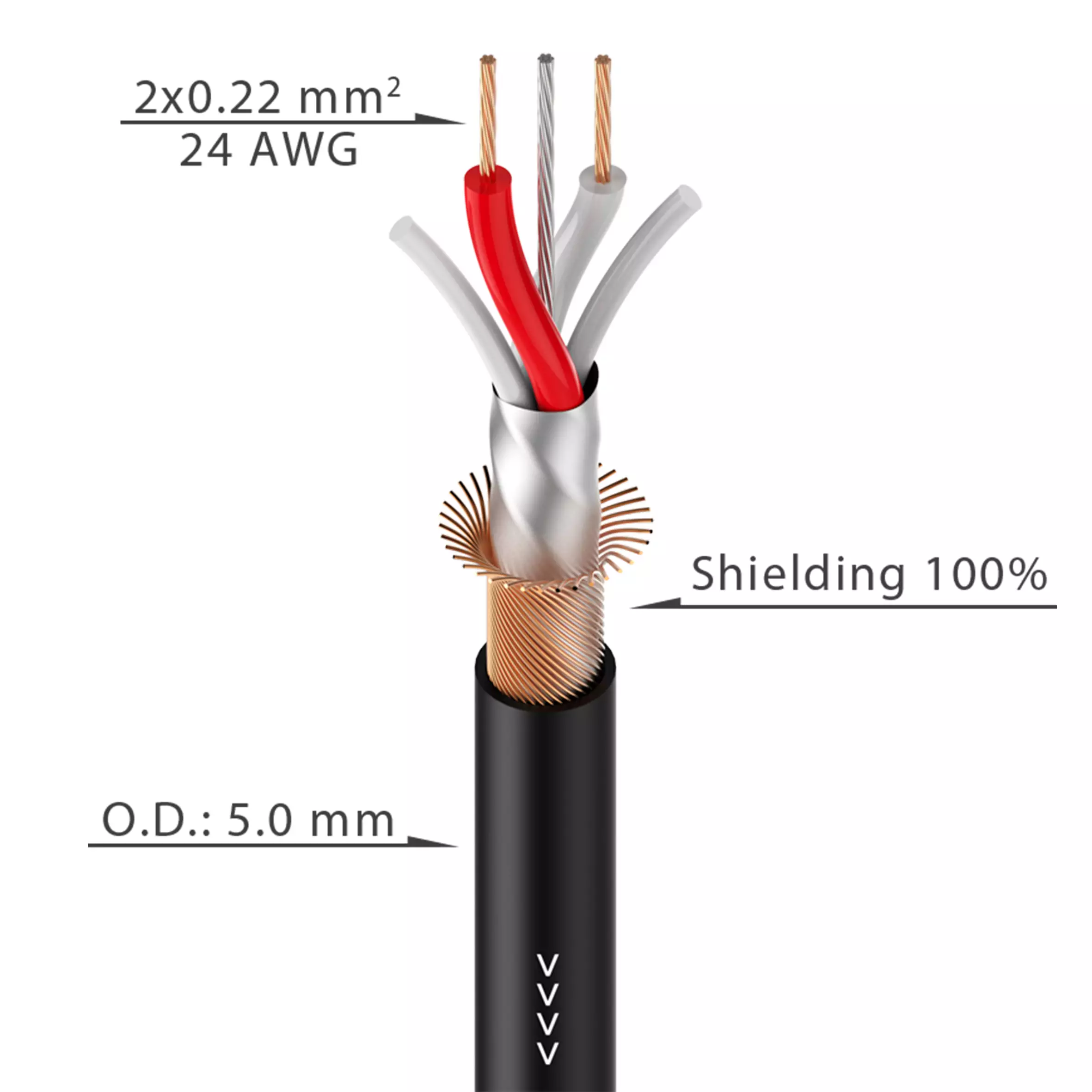

- Shielding: Copper spiral shielding with 80 x 0,10 mm + AL/PT-foil+PE filler
- Shielding factor: 100 %
- Temperature range: min. -20 °C
- Temperature range: max. 85 °C
- Packaging: 100/300 m roll
