Description

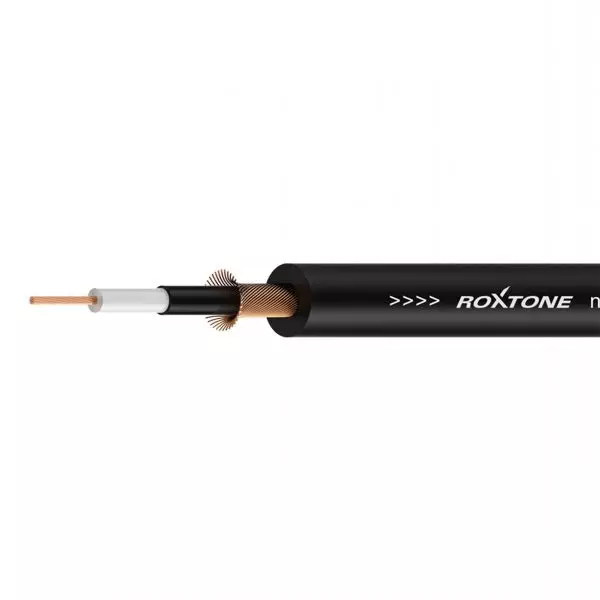

Very robust due to the large conductor diameter and fine individual stranding. 100 % Protected due to double shielding (copper spiral + semiconductor shielding). High flexibility makes it easy to wind
FEATURES:
- Stage
- Mobile
- Installations
SPECIFICATIONS:

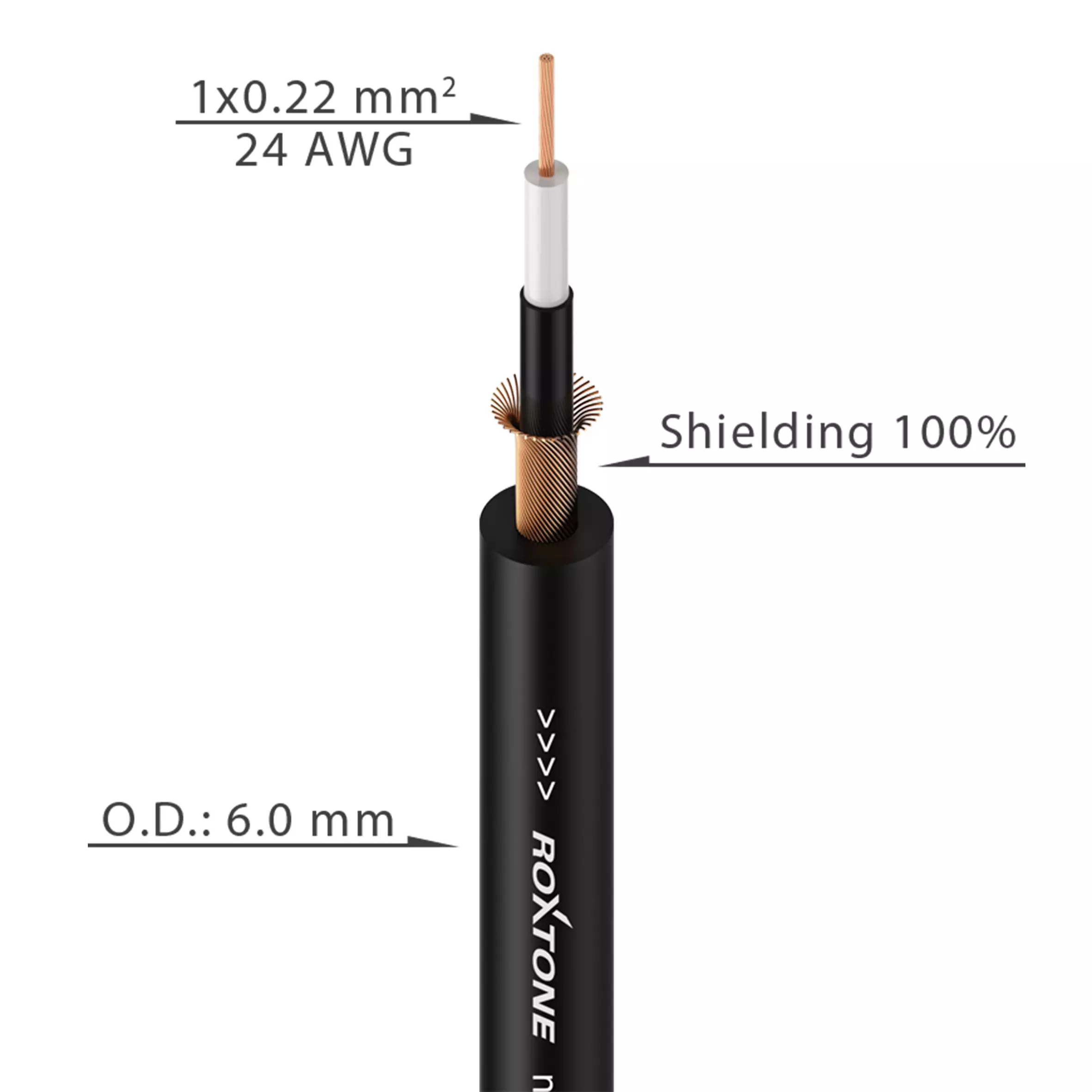

- Jacket, diameter: PVC 6,0 mm
- AWG: 24
- No. of inner conductors: 1 x 0,22 mm²
- Copper strand per conductor: 28 x 0,10 mm
- Conductor insulation: PE 1,95 mm
- Shielding: copper spiral shielding with 48 x 0,10 mm + semiconductor
- Shielding factor: 100 %
- Temperature range: min.-20 °C
- Temperature range: max.70 °C
- Packaging: 100/300 m roll
