Description

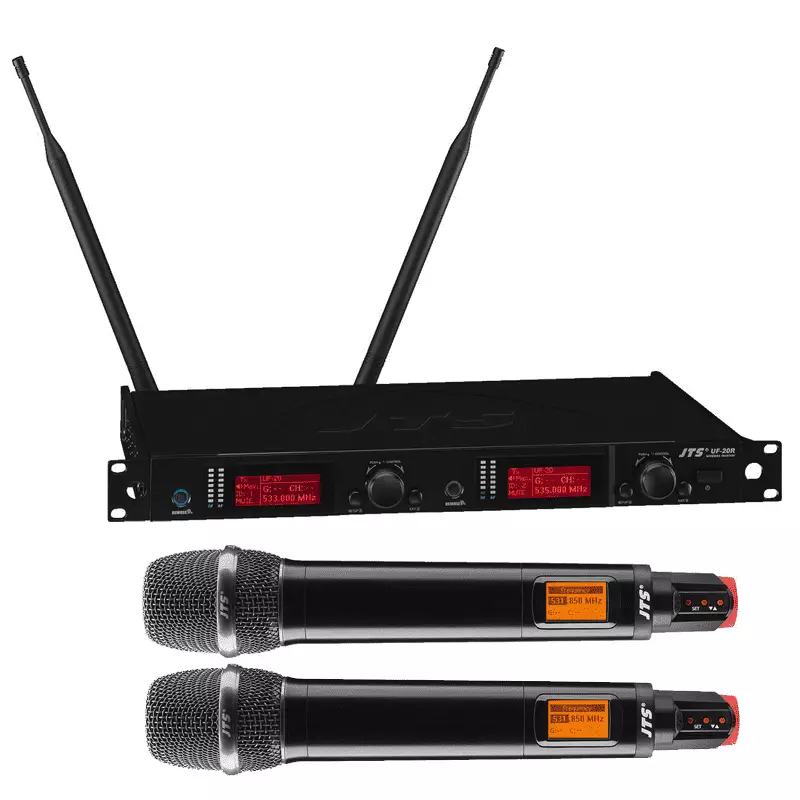

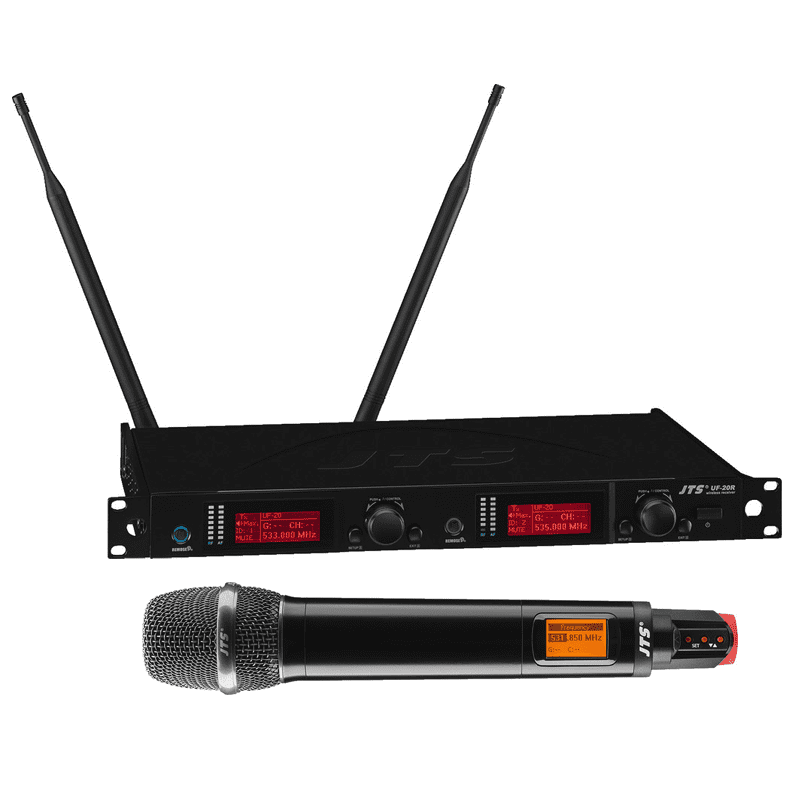

Perfect solution for stage applications of high requirements due to an excellent flexibility and reliability.
The device impresses with a convenient setup function, REMOSET technology, 75 MHz bandwidth, 3,000 frequencies which can be selected as desired and additional professional features, e.g. active carrier analysis method.
FEATURES:
- Bandwidth: 75 MHz
- 15 groups, each with 63 compatible preset channels
- 64 channels in 6 groups from 3,000 selectable individual frequencies can be stored in user presets
- RF output and mains voltage output for easily cascading up to 10 x UF-20R/5 receiver without additional splitter
- REMOSET technology for receiver/transmitter synchronisation
- Auto-scan function
- Pilot tone and noise squelch
- Equalizer function
- LED for indicating RF level and AF level
- Backlit display for indicating battery status of the transmitter, frequency setup, active antenna
SPECIFICATIONS:
- Carrier frequency range: 530-605 MHz
- Audio frequency range: 50-18,000 Hz
- Channels: 2
- THD: < 0.5%
- Dynamic range >: 108 dB
- Admiss. ambient temp.: 0-40 °C
- Audio signal receiver: 100 mV XLR
- Power supply receiver: 100-240 V/50-60 Hz/25 VA
- Width receiver: 480 mm
- Height receiver: 44 mm
- Depth receiver: 214 mm
- Weight receiver: 2.9 kg
