Description

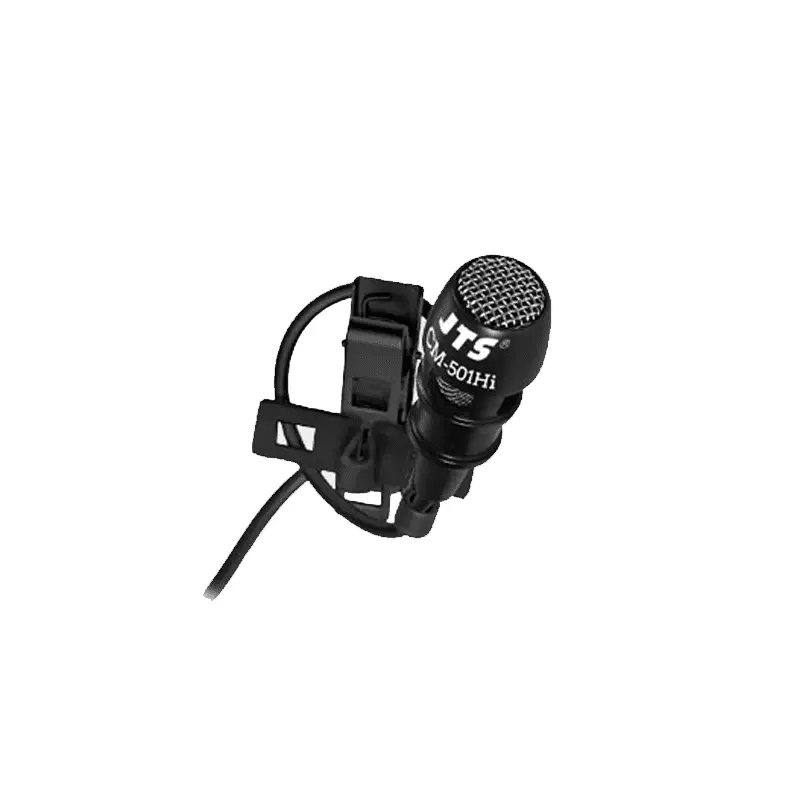

The CM-501HiC4 deploys a high sensitivity capsule with unidirectional pick up pattern. It provides maximum gain before feedback. Wide frequency response and dynamic range assure excellent sound reproduction. The latest clip set, CLP-258, provides versatile application. Single and dual microphone pick up are at your choice. CLP-258 assures optimal
picking up for different dressings.
FEATURES:
SPECIFICATIONS:
- Type: Uni-directional Condenser
- Frequency Response: 100 to 15,000Hz
- Polar Pattern: Cardioid
- Output Level(at 1,000Hz): -54±3 dB* (2mV) *0dB=1V /μbar
- Impedance Rated impedance is: 3.7kΩ
- Max. SPL for 1%THD: 115dB
- Standard Operating Voltage: 5Vdc
- Operation Voltage Range: 3~10 Vdc
- Current consumption: Max. 0.5mA
- Output Connector: TA4F
- Net: Weight 21.5g
