Description

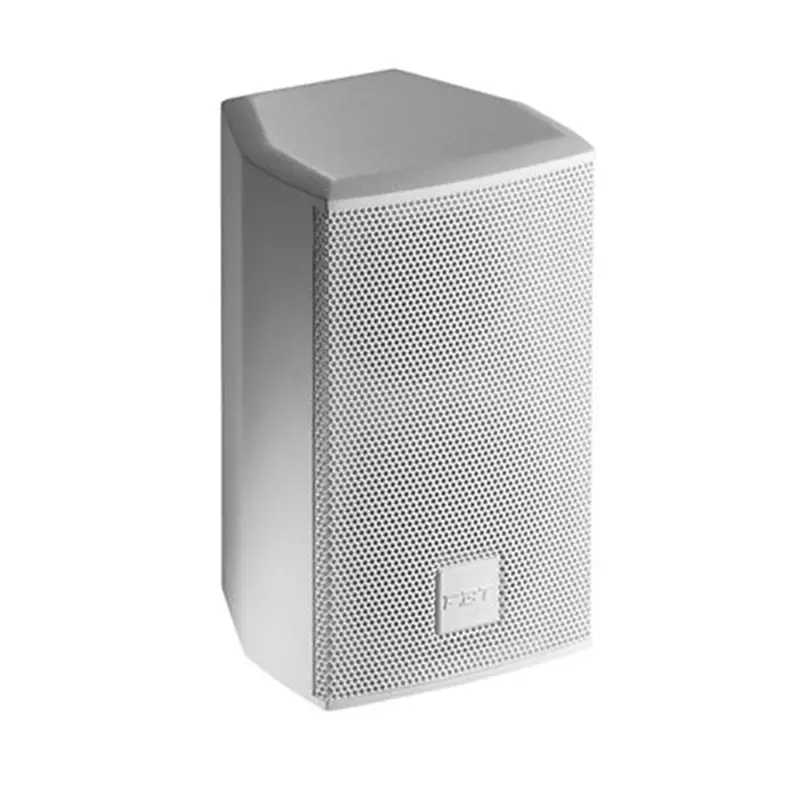

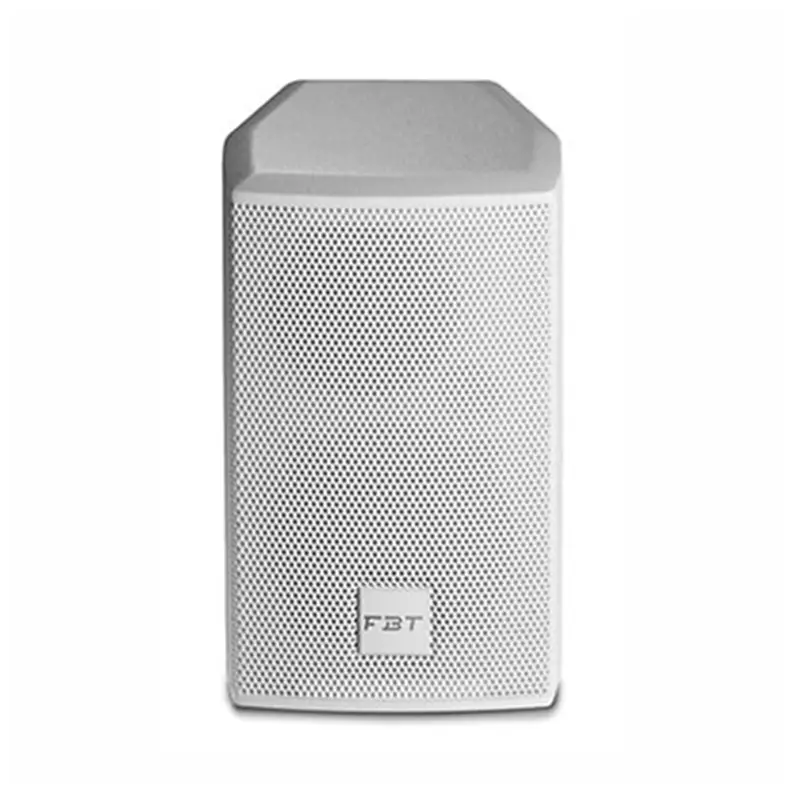

The Archon 108 is a 8″ and 1″ domed full-range passive speaker designed to provide ample bandwidth and high SPL for an accurate sound reproduction in the installed sound market perfect for modern indoor spaces.
FEATURES:
- 1 x 8” (1.5” VC) custom made LF woofer with rubber surround
- 1 x 1.5” HF high-end dome tweeter
- 8 x M5 threaded rigging points
- 2-way, passive sound reinforcement systems
- 12mm (0.47”) baltic birch plywood cabinets
- Custom designed LF woofers, made in Italy
- Custom designed HF dome tweeter, Made in Italy
- Crossover networks equipped with 4 x Euroblock speaker terminals; factory preset for optimal line transformer installation
- Multiple M5 threaded rigging points
- Acoustically transparent steel grille and antidust protection cloth
- New FBT rotatable logo badge following vertical or horizontal installation
- Optional mounting hardware
- Optional line transformer 100W
SPECIFICATIONS:
- Configuration: 2 Way
- Frequency response: 60Hz – 22kHz
- Low frequency woofer: 8″ with 1.5″ VC
- High frequency driver: 1.5″ Dome Tweeter
- Maximum SPL cont/peak: 118/121dB SPL
- Dispersion: 90 x 90 (H x V)
- Crossover frequency: 2kHz
- Input connector: 4x Euroblock
- Net Dimension (WxHxD): 248 x 411 x 248mm
- Net Weight: 6.5kg
- Transport Dimension (WxHxD): 330 x 491 x 330 mm
- Transport Weight: 8.5kg
- Recommended Amplifier: 300w RMS
