Description

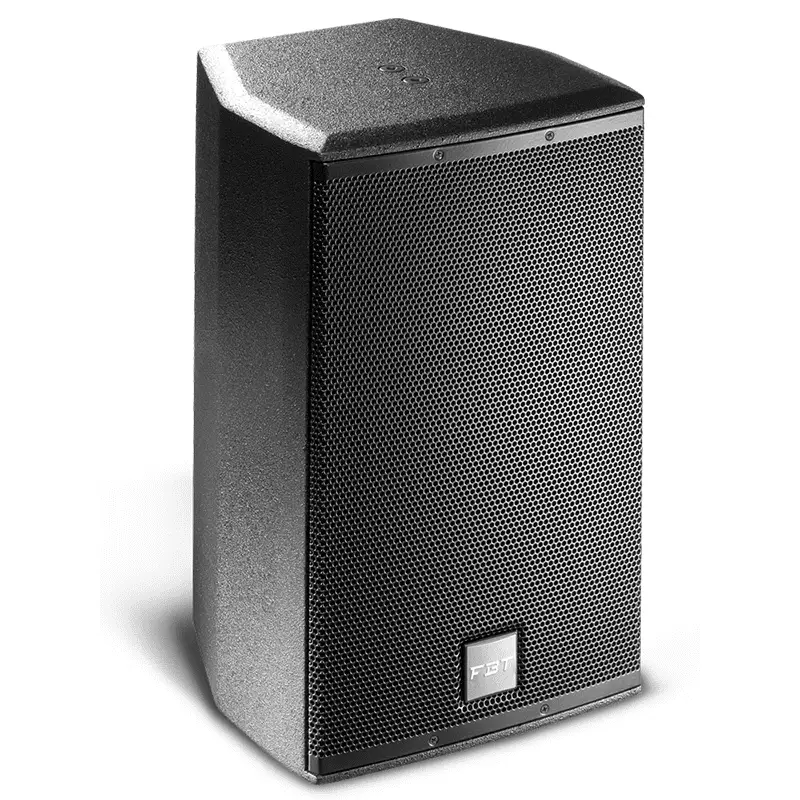

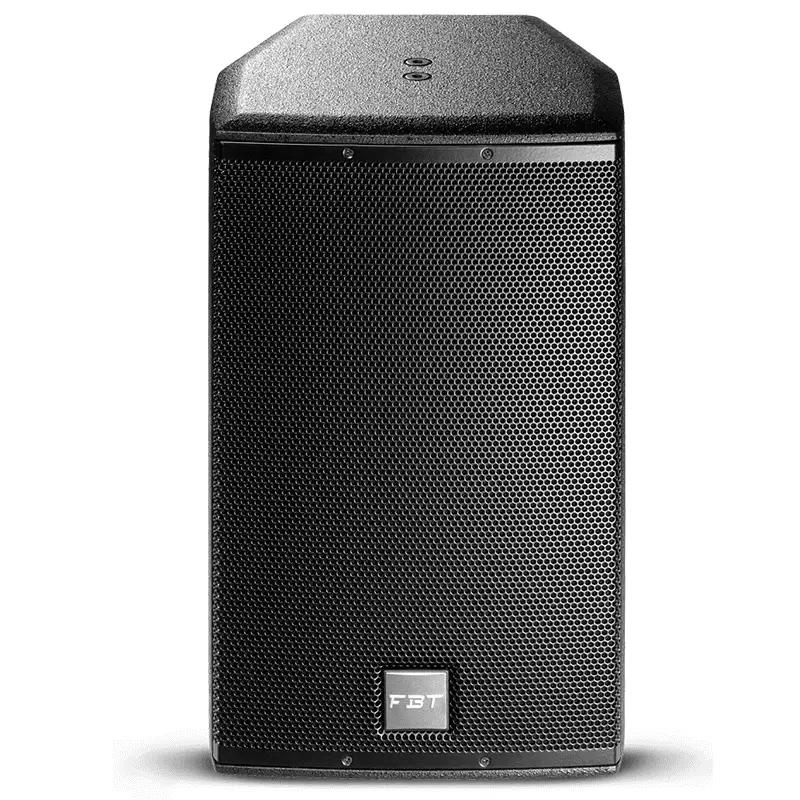

The Archon 108 is a 8″ and 1″ domed full-range passive speaker designed to provide ample bandwidth and high SPL for an accurate sound reproduction in the installed sound market perfect for modern indoor spaces.
FEATURES:
- Stylish architectural cabinet design
- Acoustically transparent steel grilles with protection cloth
- High SPL, fast responding dynamics, excellent intelligibility, wide band, extremely low distortion
- Baltic birch plywood cabinets available in black or white extra texture paint
- Choice of different RAL paint colours on order
- Choice of different paint finish: glossy, matt, textured and more, on order
- Custom designed low frequency woofers, made in Italy
- Custom designed high frequency compression drivers, made in Italy
- Rotatable horns for optimal horizontal or vertical sound dispersion angle
- Selectable bi-amp/full range crossover network
- Full suspension possibilities through multiple M10 / M5 threaded rigging points and a wide range of mounting hardware
- Possibility to install line transformers for 100V/70V applications
- Possibility to order weatherproof versions for outdoor use
- Possibility to extend low frequencies performance through dedicated and compact subwoofers (Archon 208S, Archon 215S)
SPECIFICATIONS:
- Configuration: 2 Way
- Frequency response: 60Hz – 22kHz
- Low frequency woofer: 8″ with 1.5″ VC
- High frequency driver: 1.5″ Dome Tweeter
- Maximum SPL cont/peak: 118/121dB SPL
- Dispersion: 90 x 90 (H x V)
- Crossover frequency: 2kHz
- Input connector: 4x Euroblock
- Net Dimension (WxHxD): 248 x 411 x 248mm
- Net Weight: 6.5kg
- Transport Dimension (WxHxD): 330 x 491 x 330 mm
- Transport Weight: 8.5kg
- Recommended Amplifier: 300w RMS
