Description

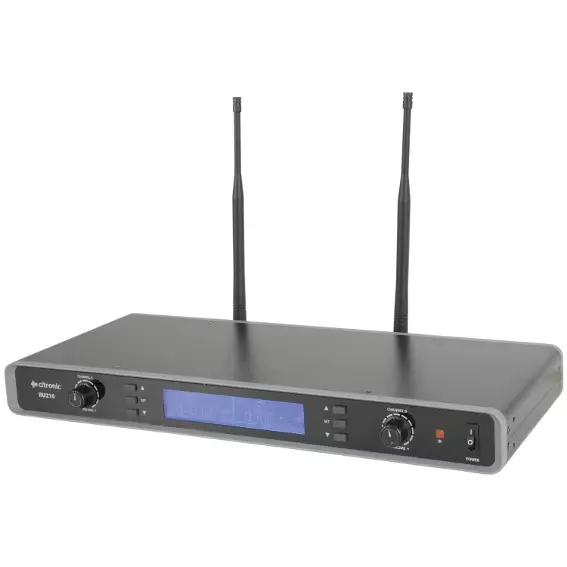

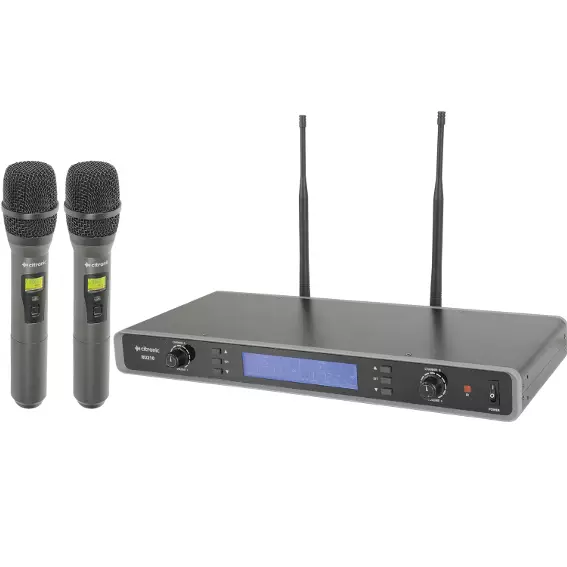

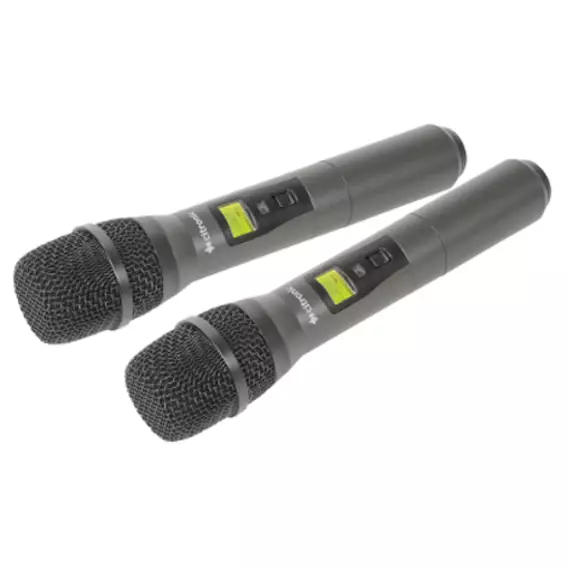

Dual channel PLL tuneable UHF wireless system with 2 handheld transmitters. The receiver unit is compatible with standard 19″ racks using the included rack ears and front mounting antenna accessories. The RF carrier frequency is selected on the receiver and synchronized to the transmitter via infra-red at the touch of a button. Up to 2 RU210 systems can be operated together on the EU licence-free band.
FEATURES:
- PLL tunable with 81 UHF frequencies
- Pilot tone & mute circuit for stable signal

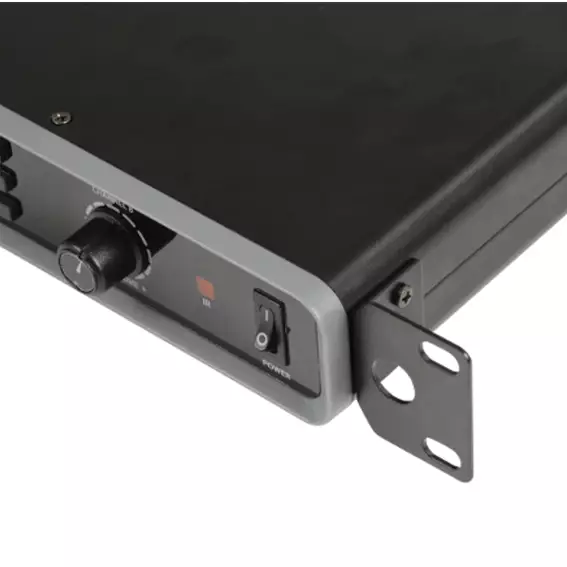

- Rack-mounting accessories included
- Supplied with mains adaptor and 4 x AA batteries
- Licence free operation in EU
SPECIFICATIONS:
- Power supply: 12-18Vdc, 500mA (mains adaptor included)

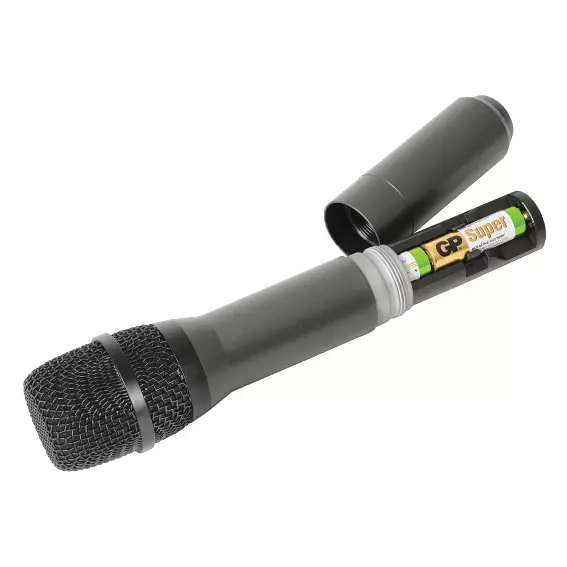

- Batteries: 4 x AA (2 per transmitter – included)
- Carrier frequencies: 863 – 865MHz (81 selectable frequencies)
- Dimensions : receiver: 44 x 409 x 190mm
- Signal to noise ratio: >105dB
- THD: 85dB
- Range: 60m
- Output impedance: 2.2k Ohms
- Output level: 400mV (balanced), 200mV (unbalanced)
- Weight : receiver: 1.37kg
- Frequency response: 50Hz-18KHz ±1 dB
- Dimensions : transmitter: 265 x 49mmØ
- Weight : transmitter: 330g (no battery)
