Description

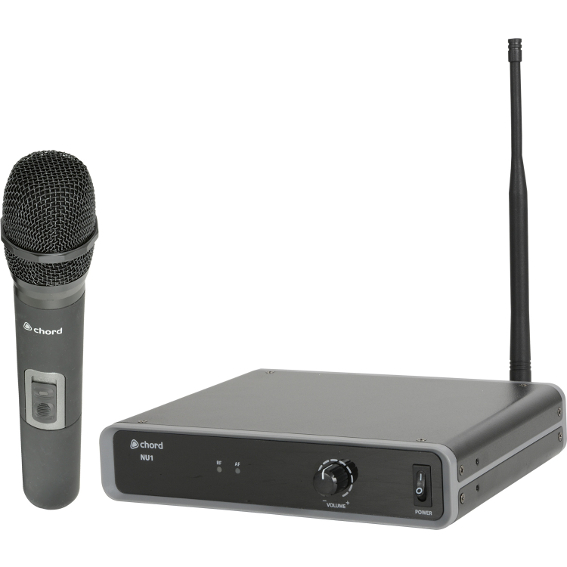

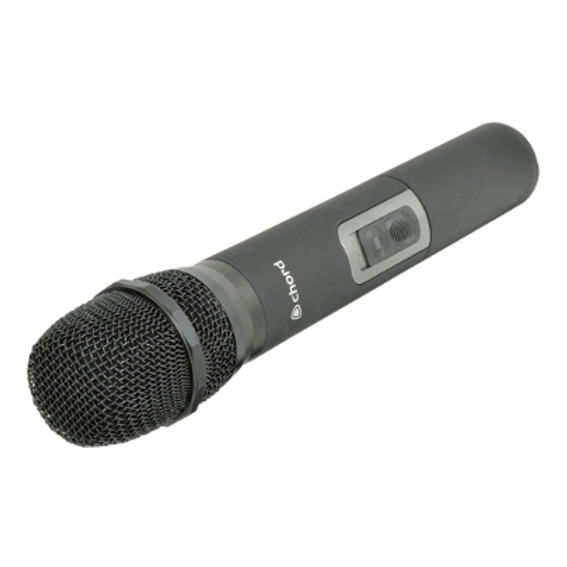

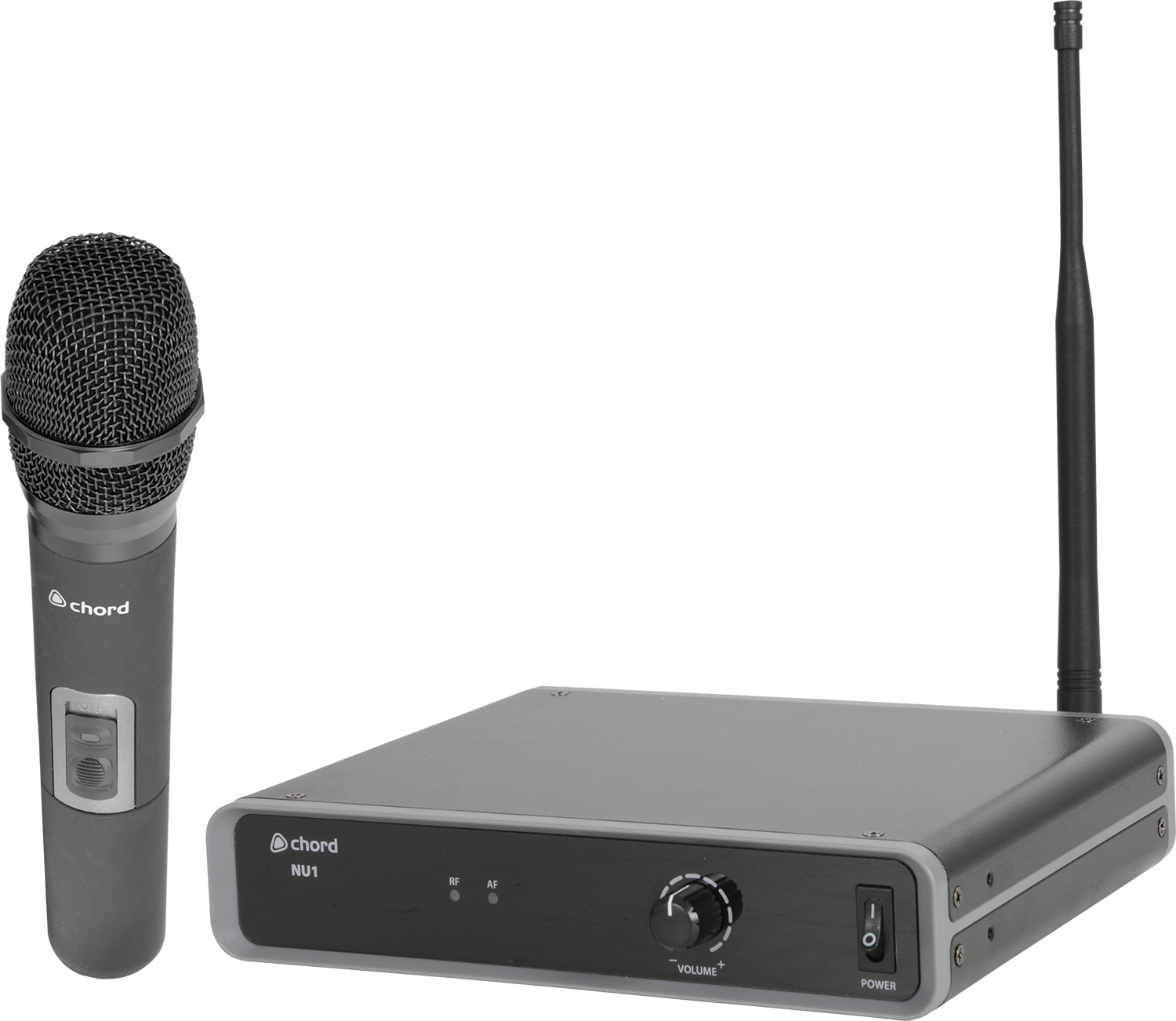

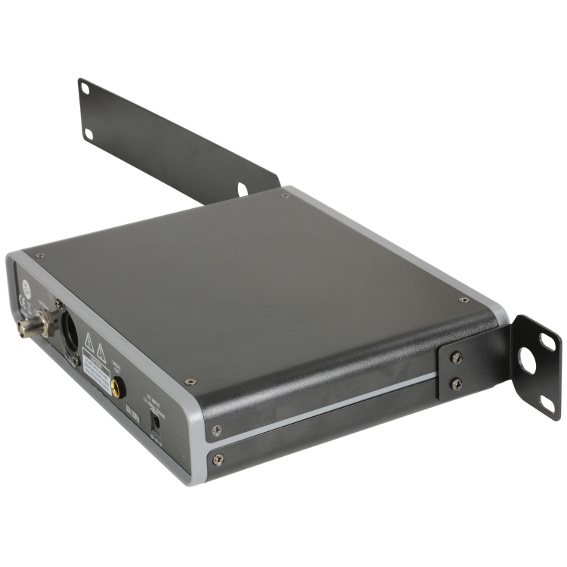

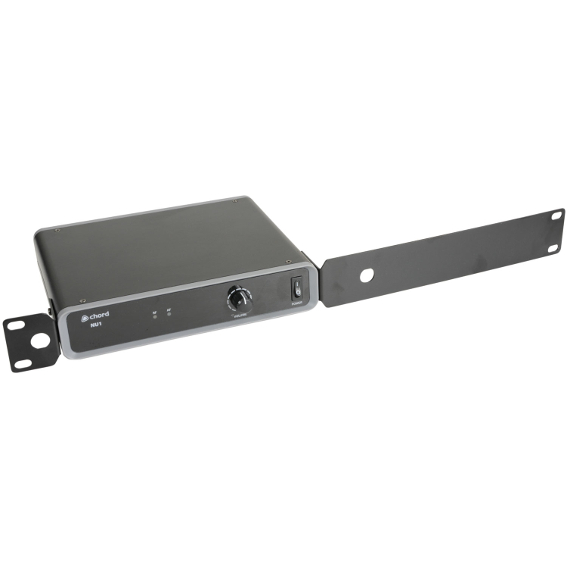

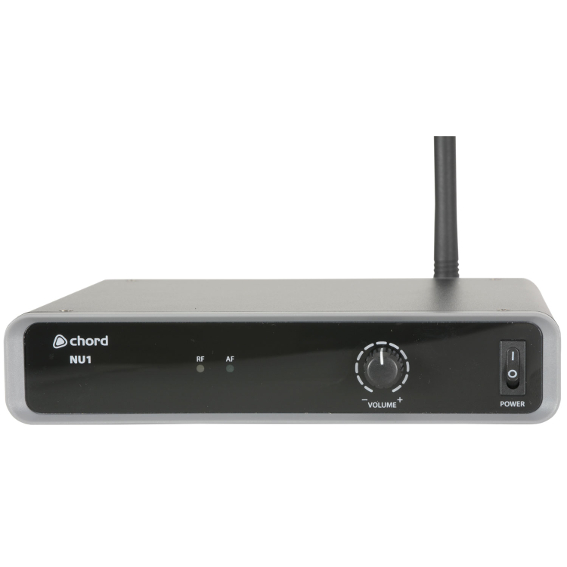

Wireless microphone system with fixed UHF handheld transmitter and half rack-width receiver. The receiver unit is compatible with standard 19″ racks using the included rack ears and front mounting antenna accessories.
FEATURES:
- Rack-mounting accessories included
- Supplied with mains adaptor and 2 x AA batteries
- Pilot tone & mute circuit for stable signal
- Licence free operation in EU
SPECIFICATIONS:
- Power supply: 12-18Vdc, 350mA (mains adaptor included)
- Batteries: 2 x AA (for transmitter – included)
- Range: 60m
- Signal to noise ratio: >105dB
- THD: <0.5% @ 1kHz
- Frequency response: 50Hz-18KHz ±1 dB
- Image rejection: >85dB
- Output impedance: 2.2k Ohms
- Dimensions : receiver: 44 x 198 x 190mm
- Weight : receiver: 710g
- Output level: 400mV (balanced), 200mV (unbalanced)
- Dimensions : transmitter: 243 x 48mmØ
- Weight : transmitter: 238g (no battery)Carrier frequency 863.1MHz
