Description

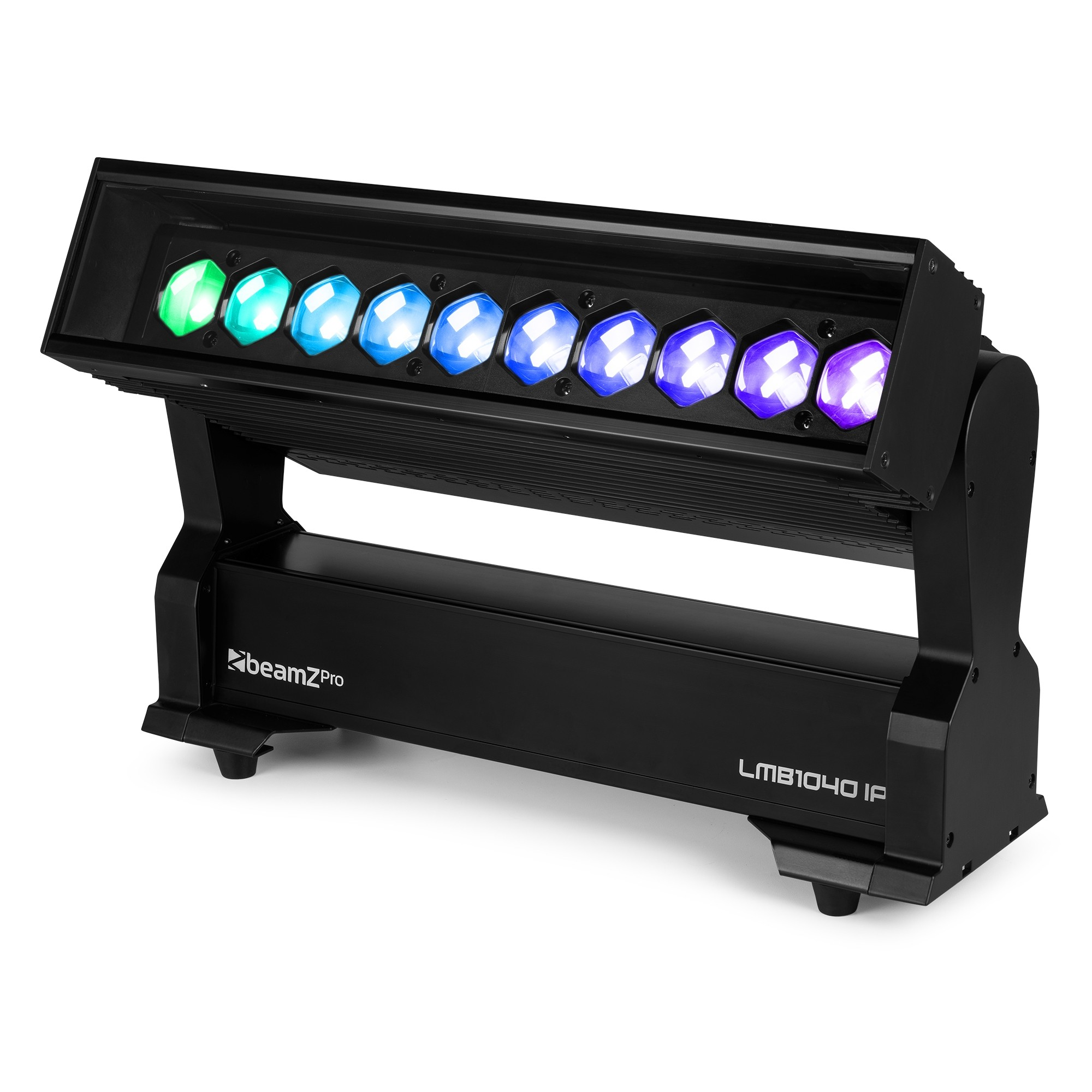

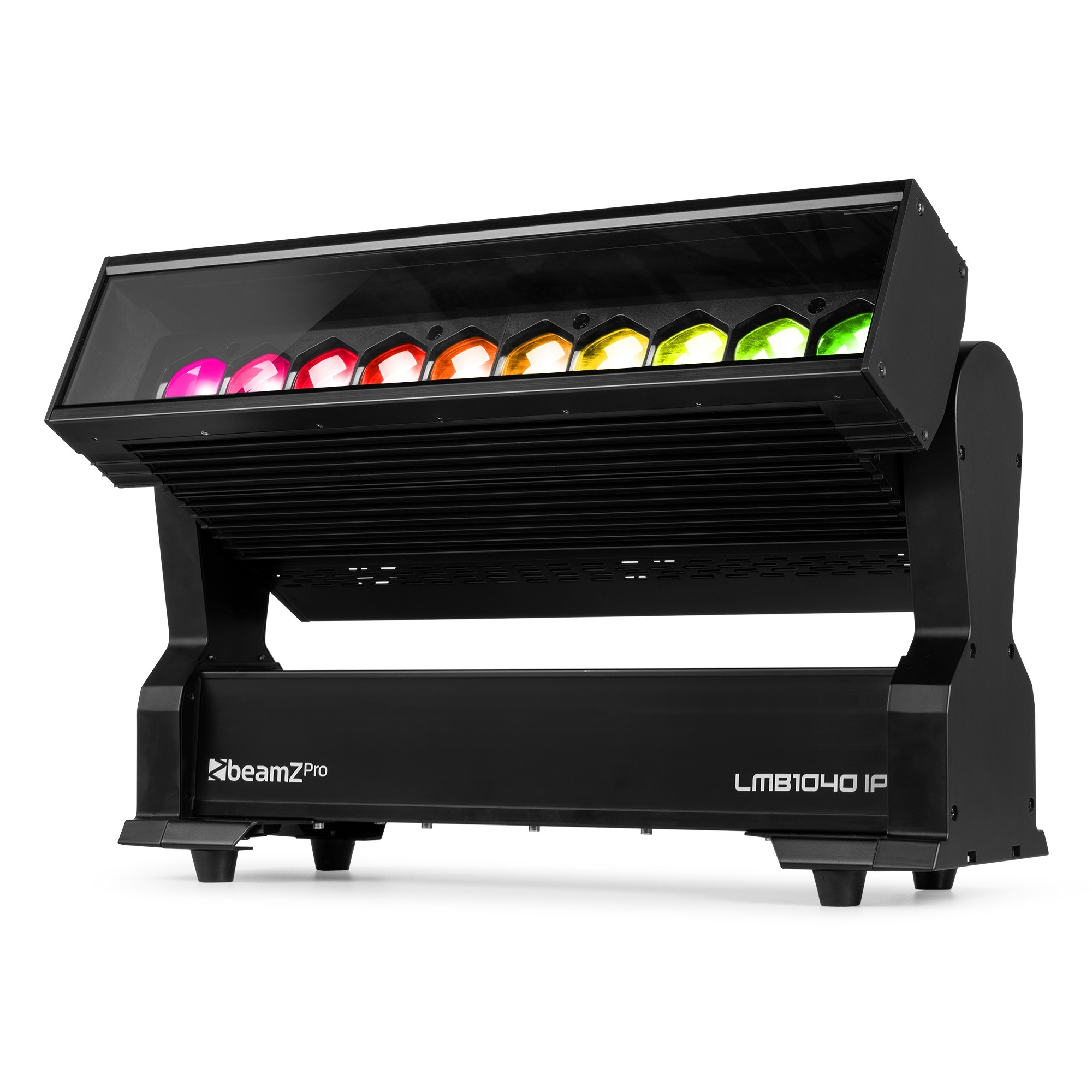

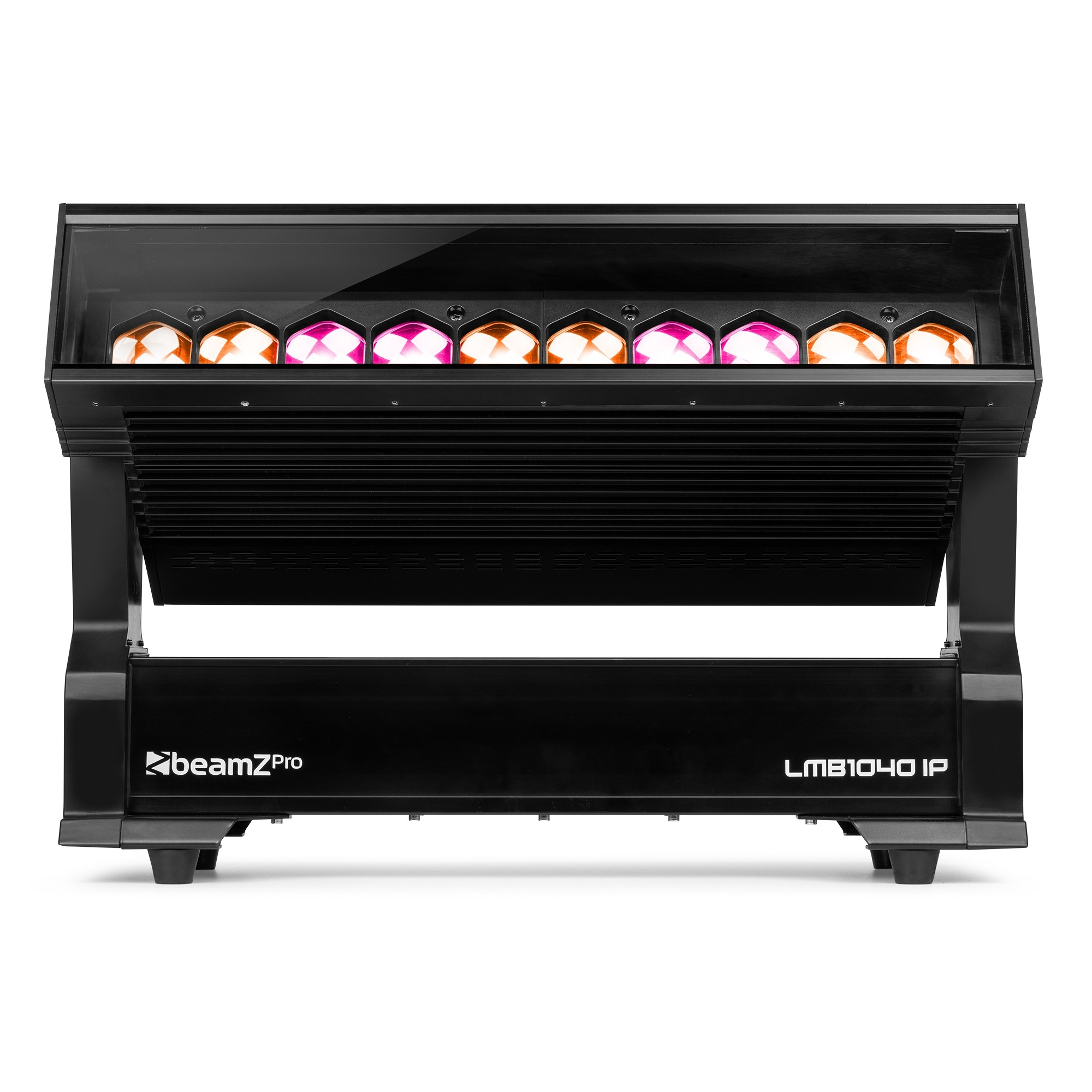

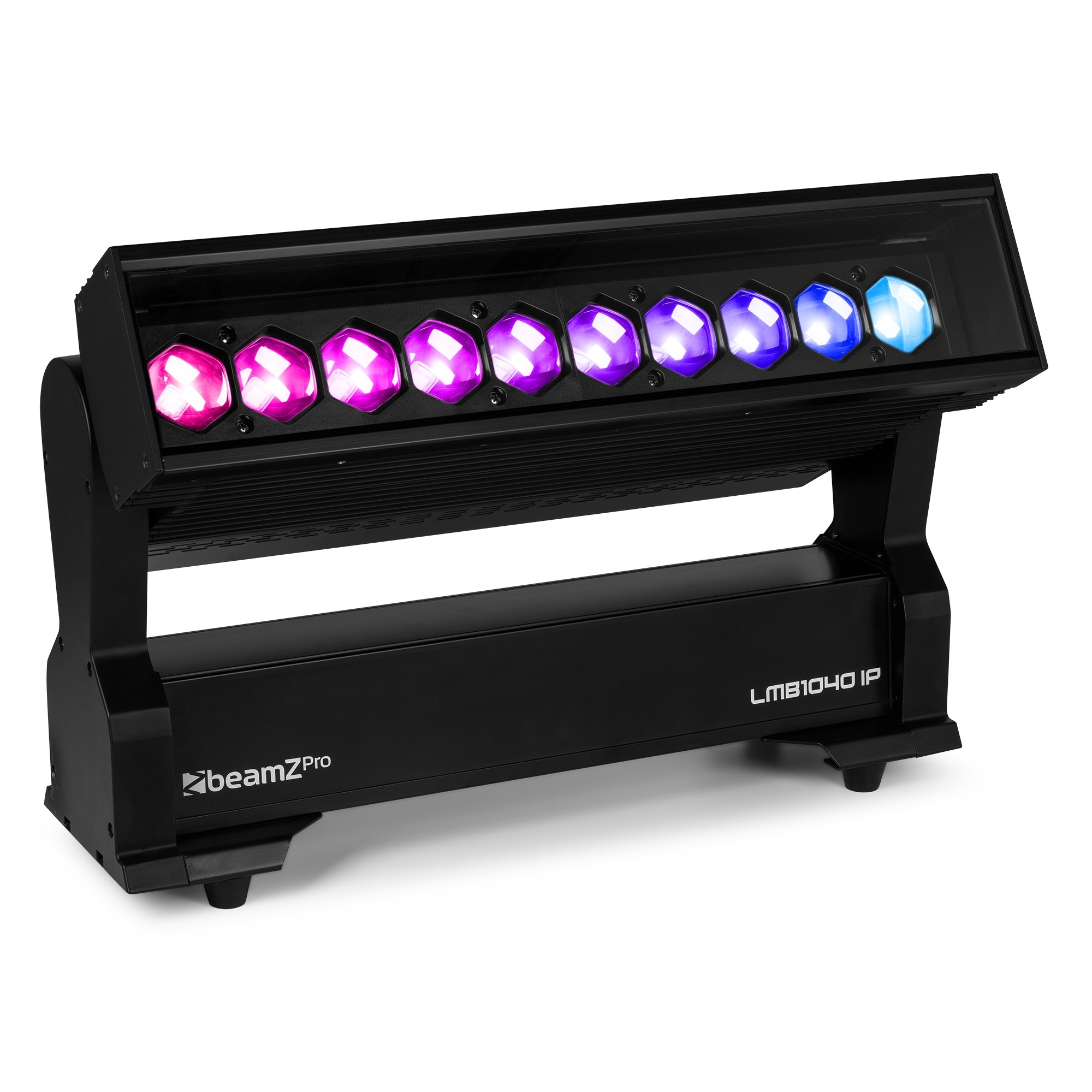

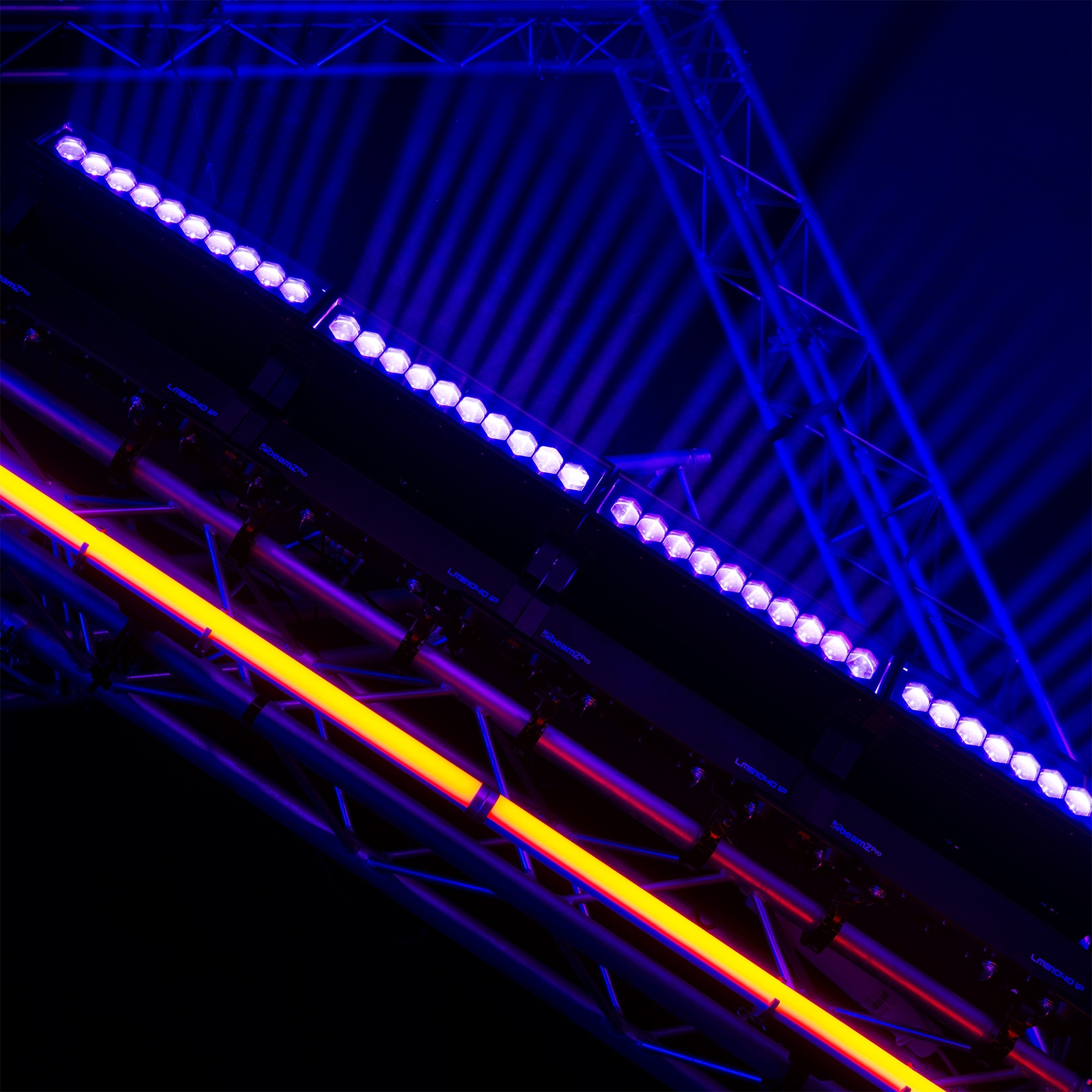

The LMB1040 is a high-performance weatherproof LED bar that produces a powerful zoomable range of movable light via its ten RGBW 4-in-1 40W high-quality LEDs. Each pixel can be controlled individually, and the light output can be easily converted into dynamic bundles full of numerous beams. This bright, moving pixel bar features a zoom range of 3º to 37º, a linear dimmer from 0 to 100%, an electronic strobe and a variable colour temperature from 2,700 K to 8,000 K. The fixture can be used on the ground or can be quickly and easily hung from a truss with the supplied Omega brackets.
FEATURES:
- High Performance Outdoor Moving Bar with Zoom
- Source: 10x 40W 4-in-1 LEDs
- Single pixel control
- Effect: Beam/Wash with RGBW Colour mixing

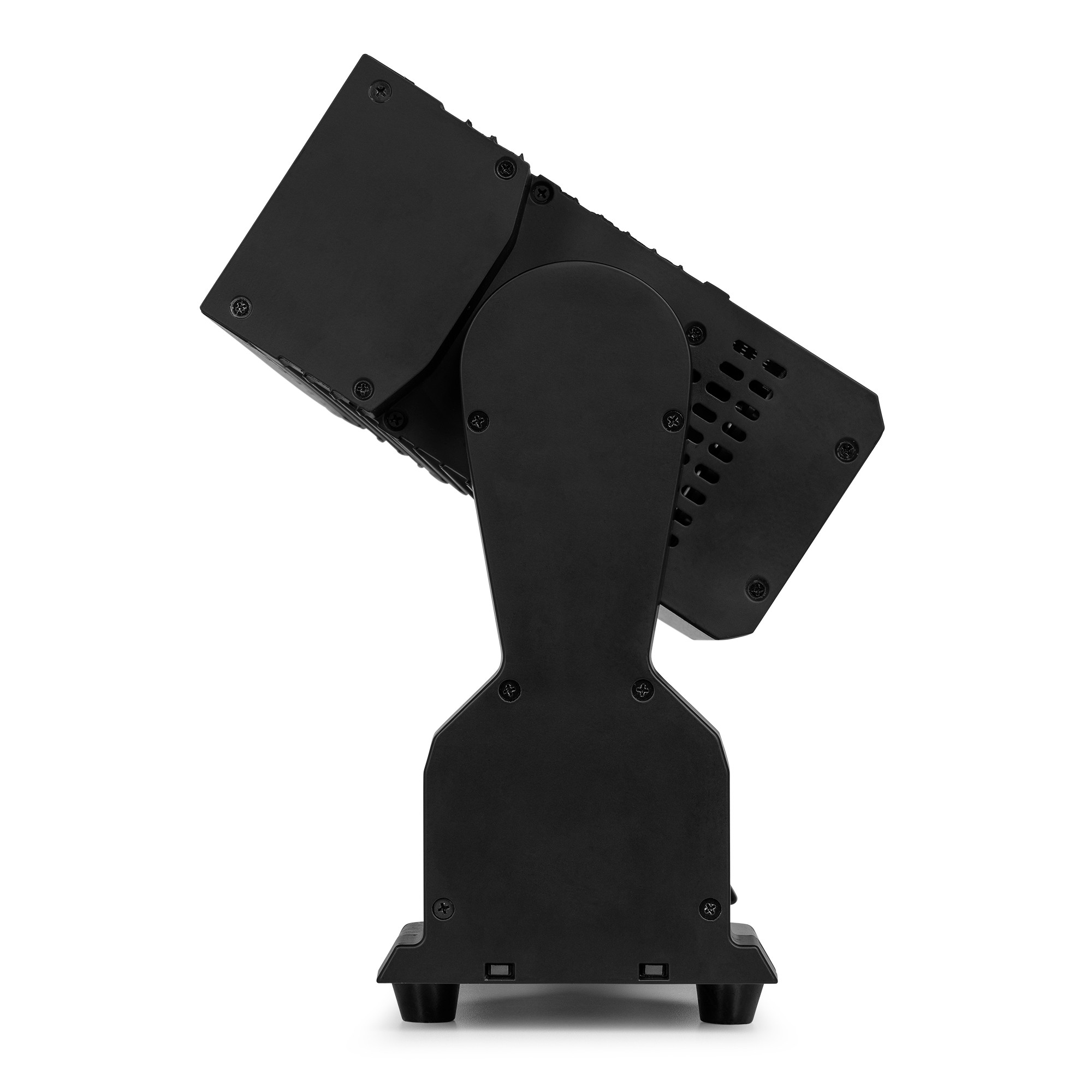

- Tilt movement: 240°
- Motorized zoom (3° – 37°)
- Linear dimmer: 0-100%
- DMX and Stand-alone mode
- Master/slave function
- Auto mode with adjustable speed

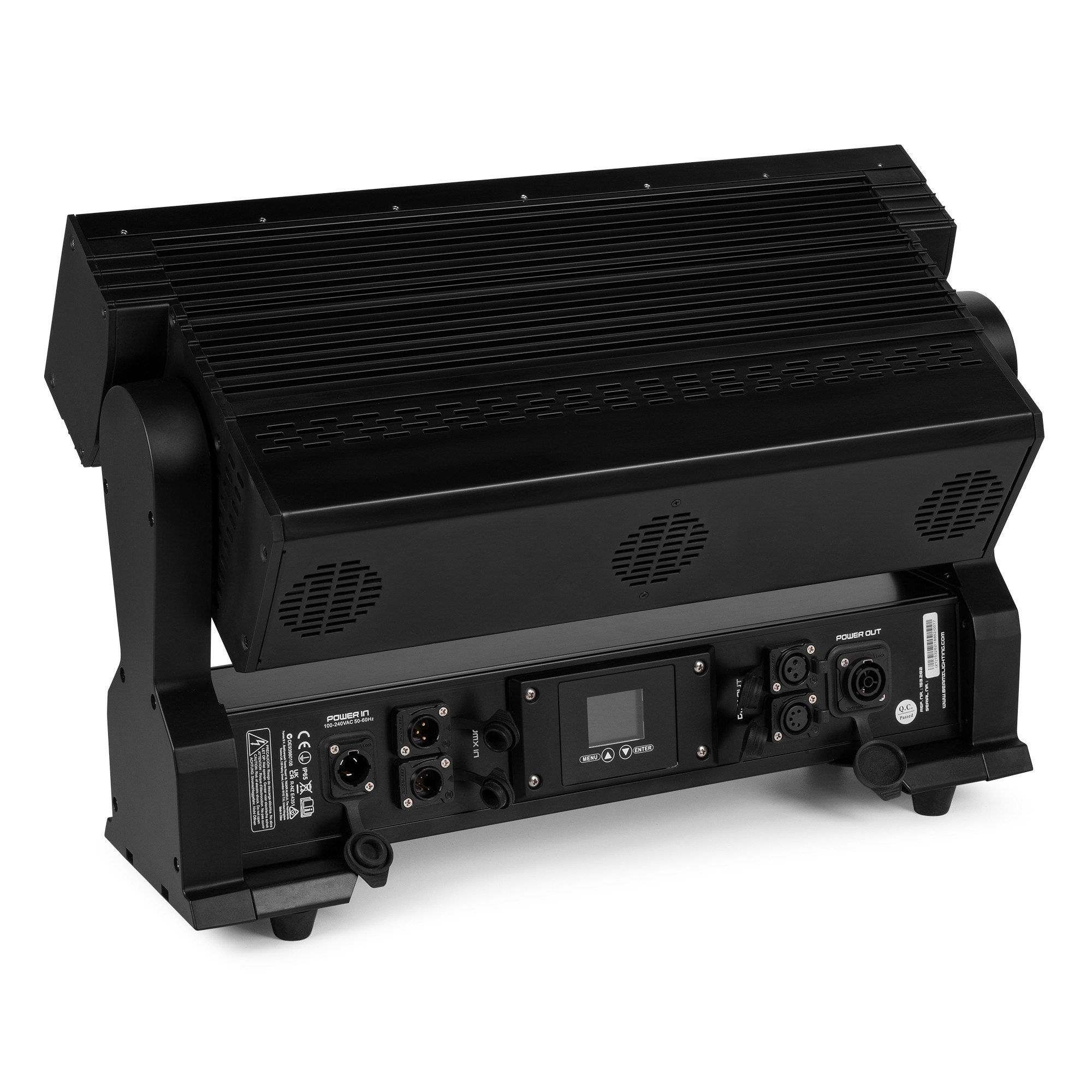

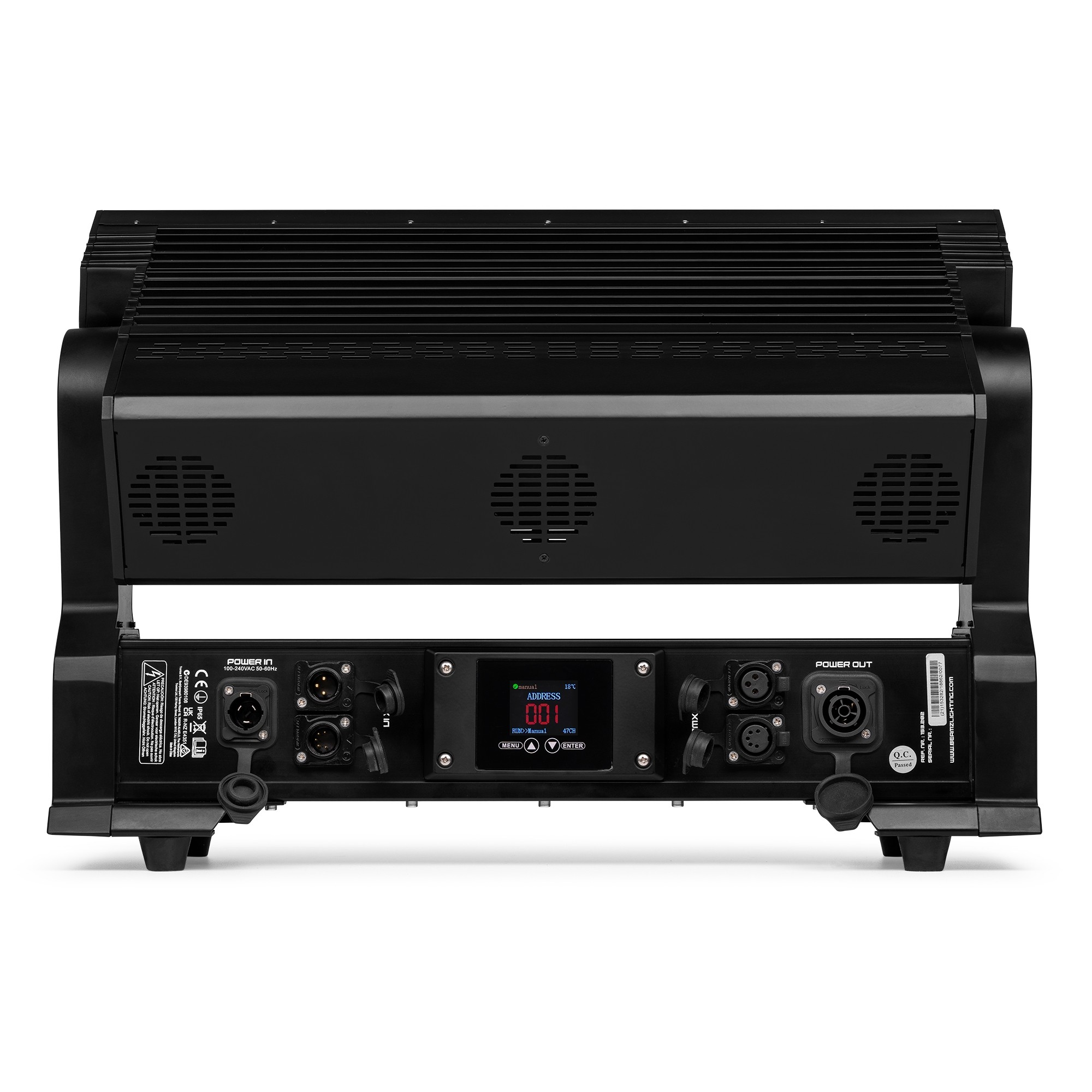

- Control panel with LCD display
- Efficient low noise fan cooling system
- DMX in/output via 3/5-pin IP65 XLR
- P-Con TR input/output
- Including Omega brackets
SPECIFICATIONS:
- Product colour: Black
- Light source: 4-in-1 LED
- Colours: Red, Green, Blue, White
- LED power: 40W
- Colour temperature: 2700K – 8000K
- Quantity of LEDs: 10
- Beam angle: Min: 3°
- Beam angle: Max: 37°
- Field angle: min: 6°
- Field angle: max: 59°
- Illuminance: 20.666 lx @ 1m
- Flash rate per second: 1 – 24Hz
- Modes: Automatic programs, DMX, Master/Slave
- DMX channels: 13, 26, 27, 28, 29, 46, 47
- DMX connection: 3-pin XLR, 5-pin XLR
- IP rating: IP65
- Cooling: Temperature controlled fan
- Display: LCD
- Power plug: P-Con TR1
- Power consumption: 2.98 – 1.40A
- Power supply: 100-240VAC 50/60Hz
- Dimensions (L x W x H): 536 x 159 x 398mm
- Weight (kg): 17.95
