Description

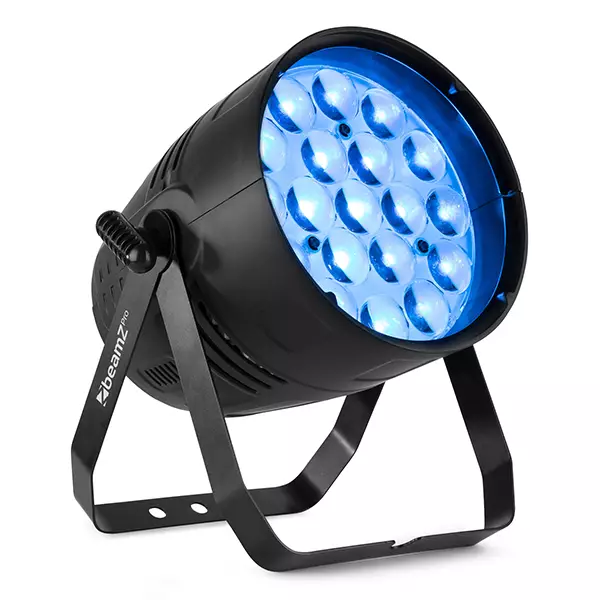

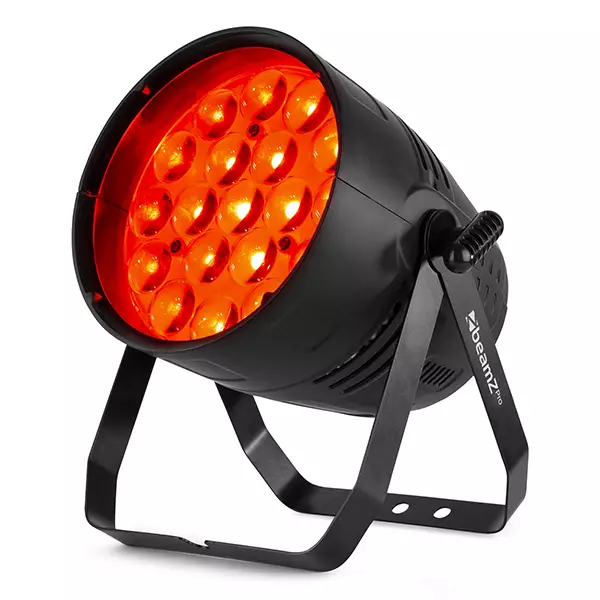

The BAC550Z is part of a new generation of Pro LED PAR effects, designed for different purposes such as stage and architectural lighting. It can be operated via various DMX settings in 3 separate controllable LED zones. Due to the colour technology this light has 19 LED modules with big lenses, so you have the ability to mix any colour! The BAC550Z features a 9° – 30° zoom angle enabling the fixture to have fantastic beam or wash effects. The extra Power Connector output enables you to simply link the power of multiple units together into a single socket.
FEATURES:
- 19x 15W 4-in-1 LEDs
- RGBW colour mixing
- Motorized zoom
- Zoom range: 9° – 30°
- 3 separate controllable LED zones
- 5, 10, 16 or 32 DMX channels
- 0-100% electronic dimmer
- Lightweight aluminium housing
- Low noise and efficient cooling system
- DMX and Stand-alone mode
- Master/slave function
- DMX in/output via 3-pin XLR
- Pre-programmed shows
- Sound activated with adjustable sensitivity
- Auto mode with adjustable speed
- Control panel with LED display
- Powerconnector input/output

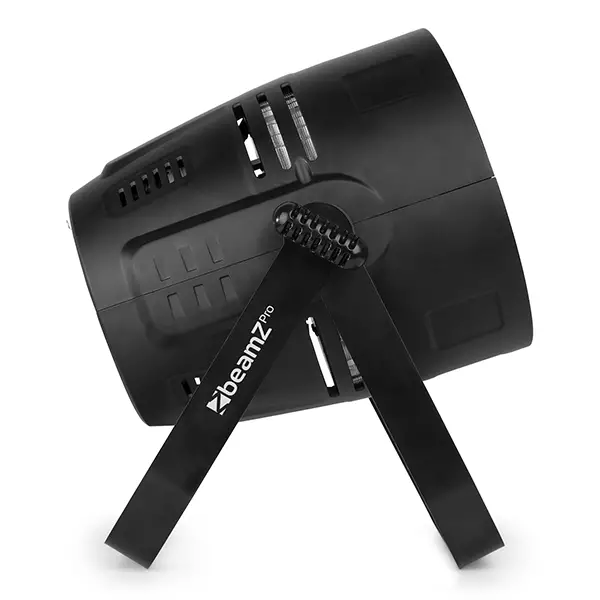

- Double bracket also acts as floor stand
SPECIFICATIONS:
- Lightsource: 4-in-1 LED
- LED Colours: Red, Green, Blue, White
- LED Power (W): 15
- Quantity of LEDs: 19
- Beam angle:min (degrees) – Only fill if item has zoom: 9
- Beam angle:max (degrees) – Only fill if item has zoom: 30
- Field angle:min (degrees) – Only fill if item has zoom: 16
- Field angle:max (degrees) – Only fill if item has zoom: 56
- Illuminance (lx): 37500
- Flash rate per second: 0 – 20Hz
- DMX Channels: 5, 10, 16, 32
- DMX Connector: 3-pin XLR
- Modes: Automatic programs, DMX, Master/Slave
- IP rating: IP20
- Power Plug: Power-connector
- Power consumption: 1.6 – 0.8A
- Power Supply: 220-240VAC 50Hz
- Dimensions (L x W x H): 210 x 280 x 330mm
- Weight: 4,60
- Accessories: DMX Cable, Mounting bracket, Power Cable
