Description

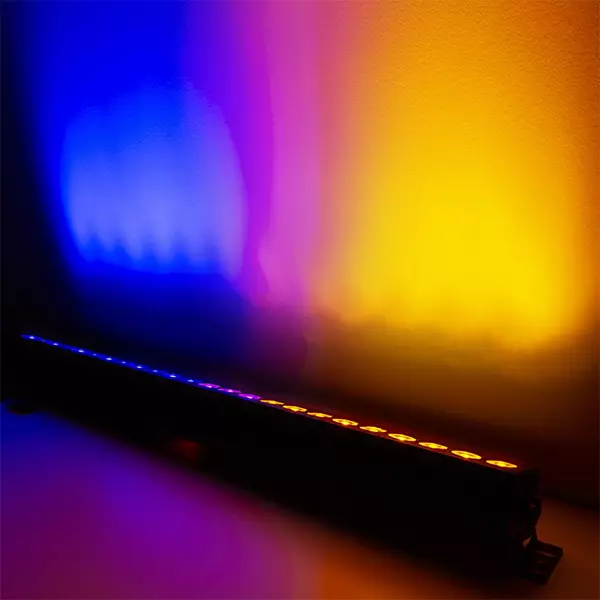

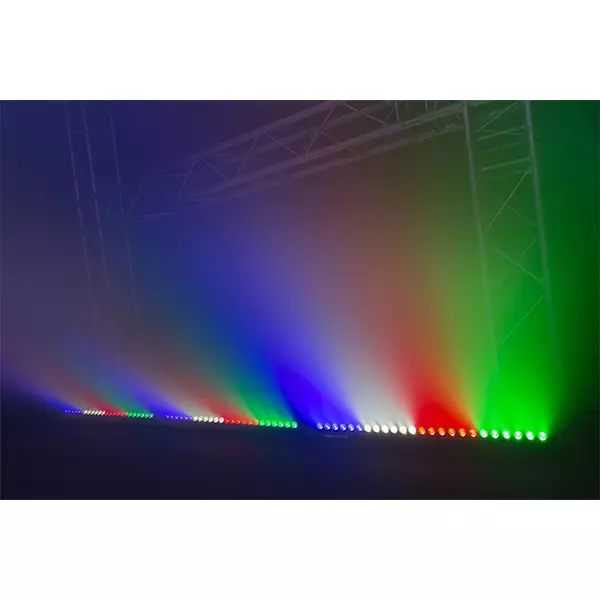

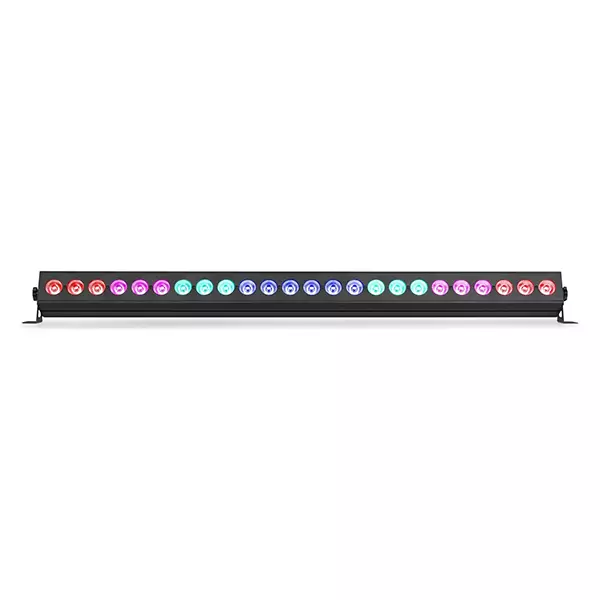

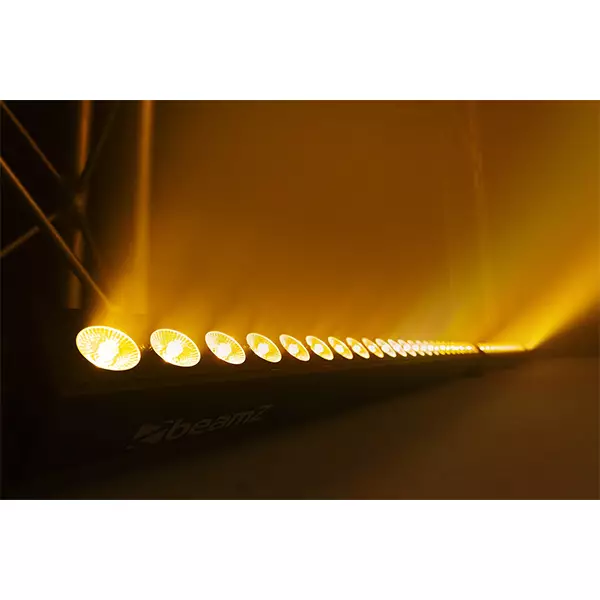

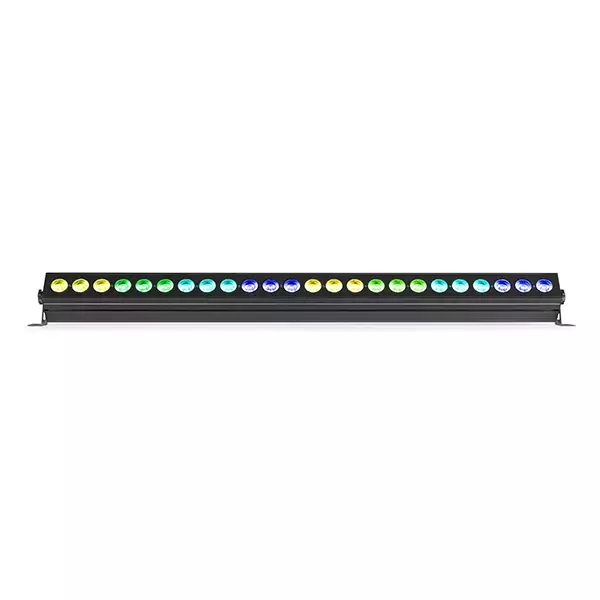

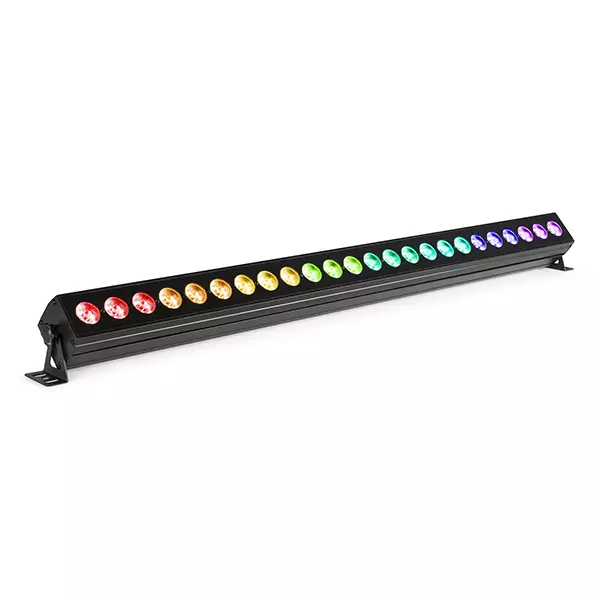

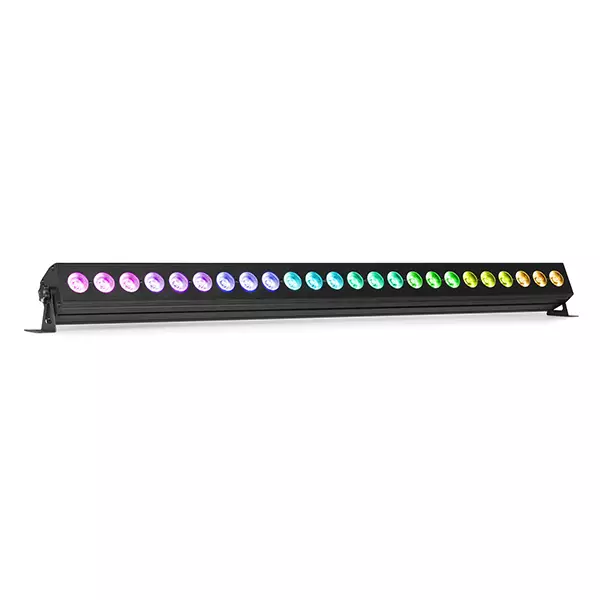

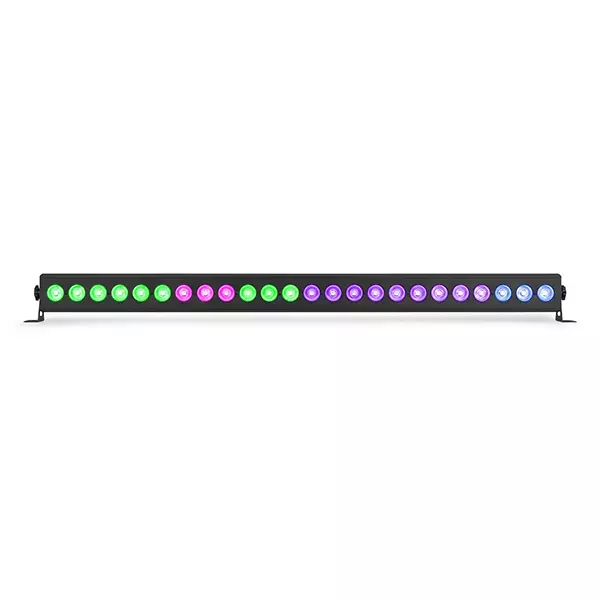

The LCB246 is a LED bar equipped with 24x 6W pieces RGBAW-UV LEDs. The LEDs are divided into 8 individually controllable sections of 3 LEDs each. While using the fixture in stand-alone mode there are pre-programmed shows that you can run automatically or sound activated, pick from the pre-set colour macros or create your own mixture of colours in RGBAW-UV mode. The extra power output enables you to simply link the power of multiple units together into a single socket.
FEATURES:
- 24x 6W 6-in-1 LEDs

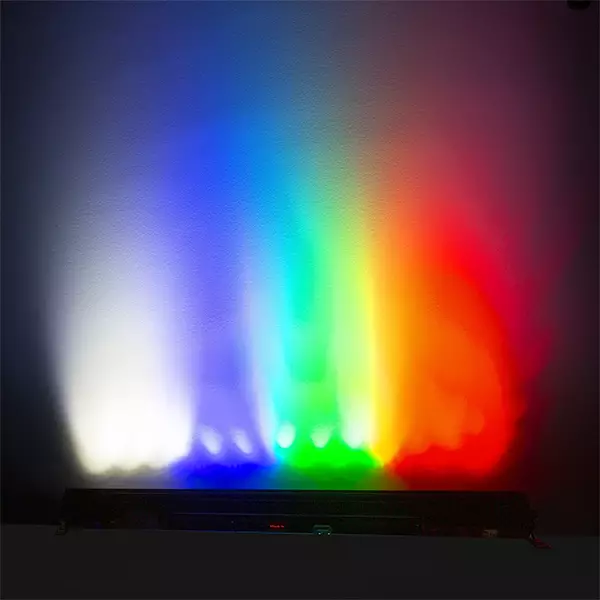

- RGBAW-UV colour mixing
- 8 separate controllable sections
- Pre-programmed shows
- 17 auto mode programs
- Sound activated
- 8, 11, 20, 36 or 74 DMX channels
- DMX and Stand-alone mode
- Master/slave function

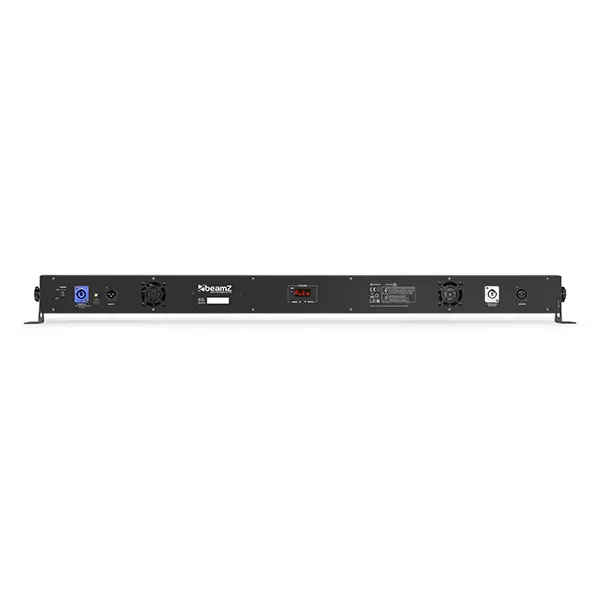

- DMX in/output via 3-pin XLR
- Control panel with LED display
- Aluminium housing
- Powerconnector in/output
SPECIFICATIONS:
- Features: Master/Slave mode
- Light source: 6-in-1 LED
- LED colours: Red, Green, Blue, Amber, White, Ultra Violet
- LED power: 6W
- Quantity of LEDs: 24
- Beam angle: 20
- Field angle: 33
- Illuminance: 5.675 lx @ 1m
- Flash rate per second: 1 – 20Hz
- DMX channels: 8, 11, 20, 36, 74
- DMX connector: 3-pin XLR
- Modes: Automatic programs, DMX, Manual, Master/Slave
- Daisy chain: Yes (max. 8 bars)
- IP rating: IP20
- Cooling: Temperature controlled fan
- Display: LED
- Power plug: Power-connector
- Power consumption: 1.70 – 0.90A
- Power supply: 100-240VAC 50/60Hz
- Dimensions (L x W x H): 1010 x 75 x 76mm
- Weight: 3.65kg
- Accessories: Mounting bracket, Power cable
