Description

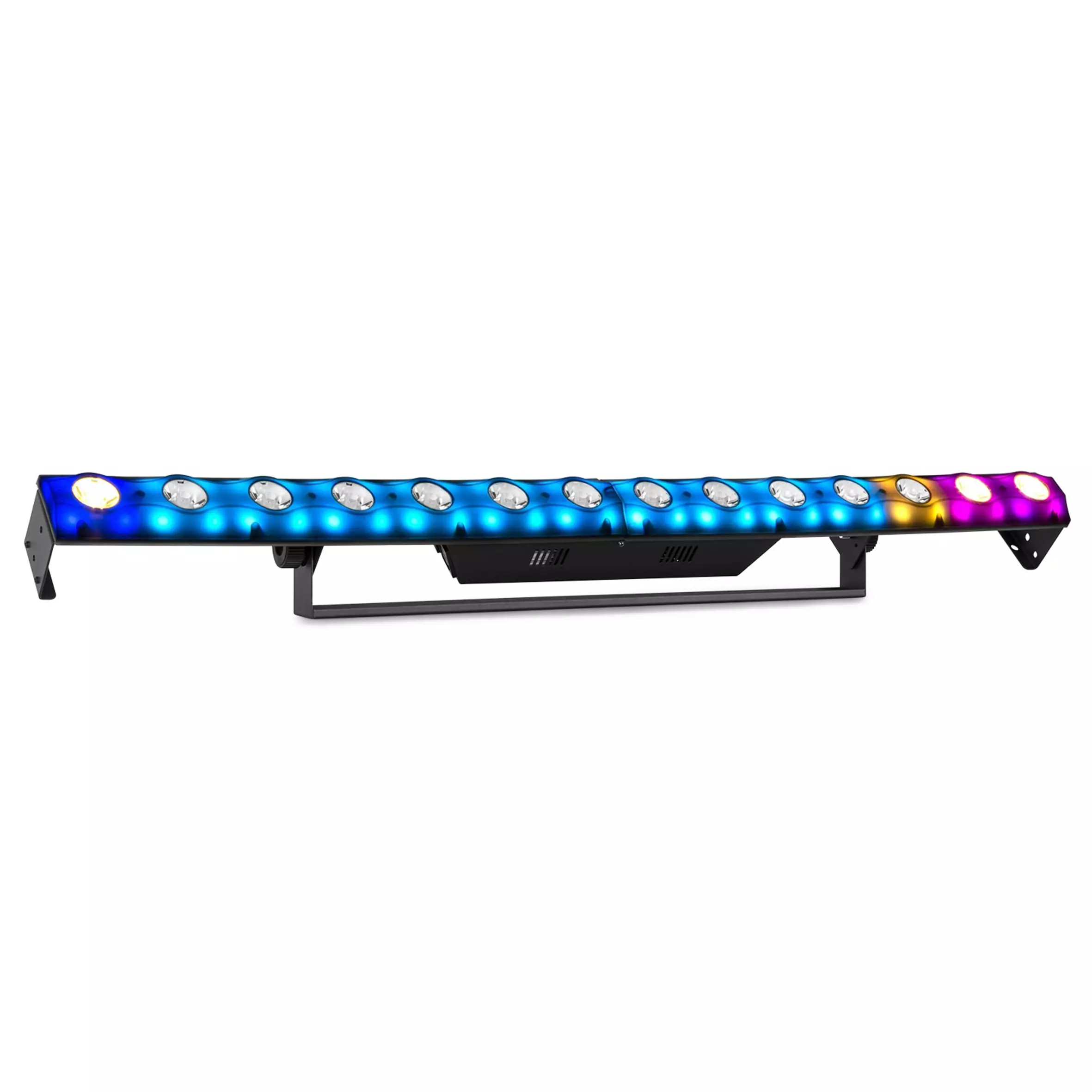

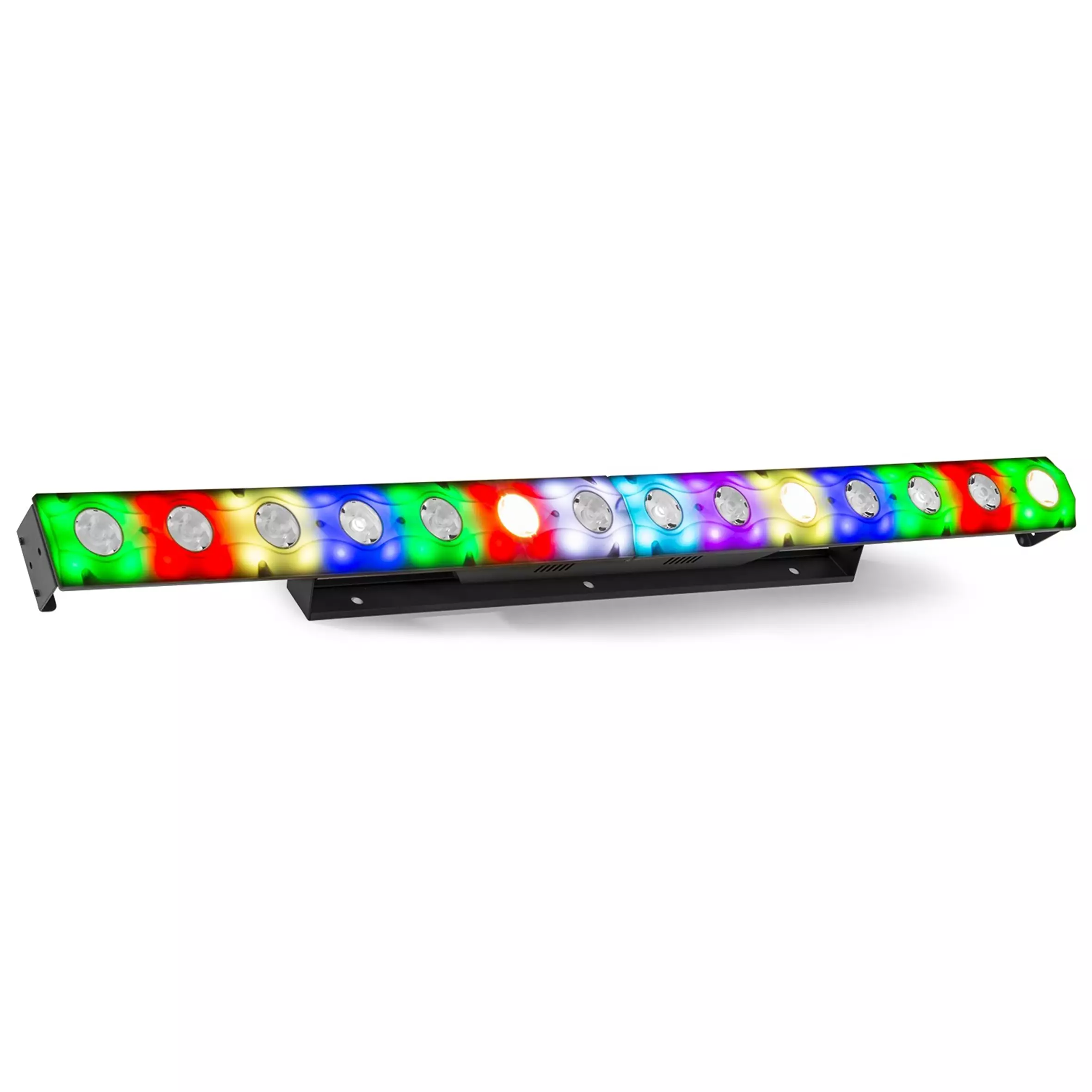

The LCB-14 is a hybrid LED bar equipped with 14x 3W Warm White LEDs and 56x SMD RGB LEDs for spectacular backlight effect. The LEDs can be programmed in single pixels for stunning chase effects. While using the fixture in stand-alone mode there are pre-programmed shows that you can run automatically or sound activated. It’s also possible to create your own mixture of colours in RGB mode (for background light). The extra power connector output enables you to simply link the power of multiple units together into a single socket.
FEATURES:
- 14x 3W Warm White LEDs for sharp 5° beams
- 56x SMD RGB LEDs (backlight)
- Single pixel control
- Built-in programs
- Silent operation, natural convection cooling system

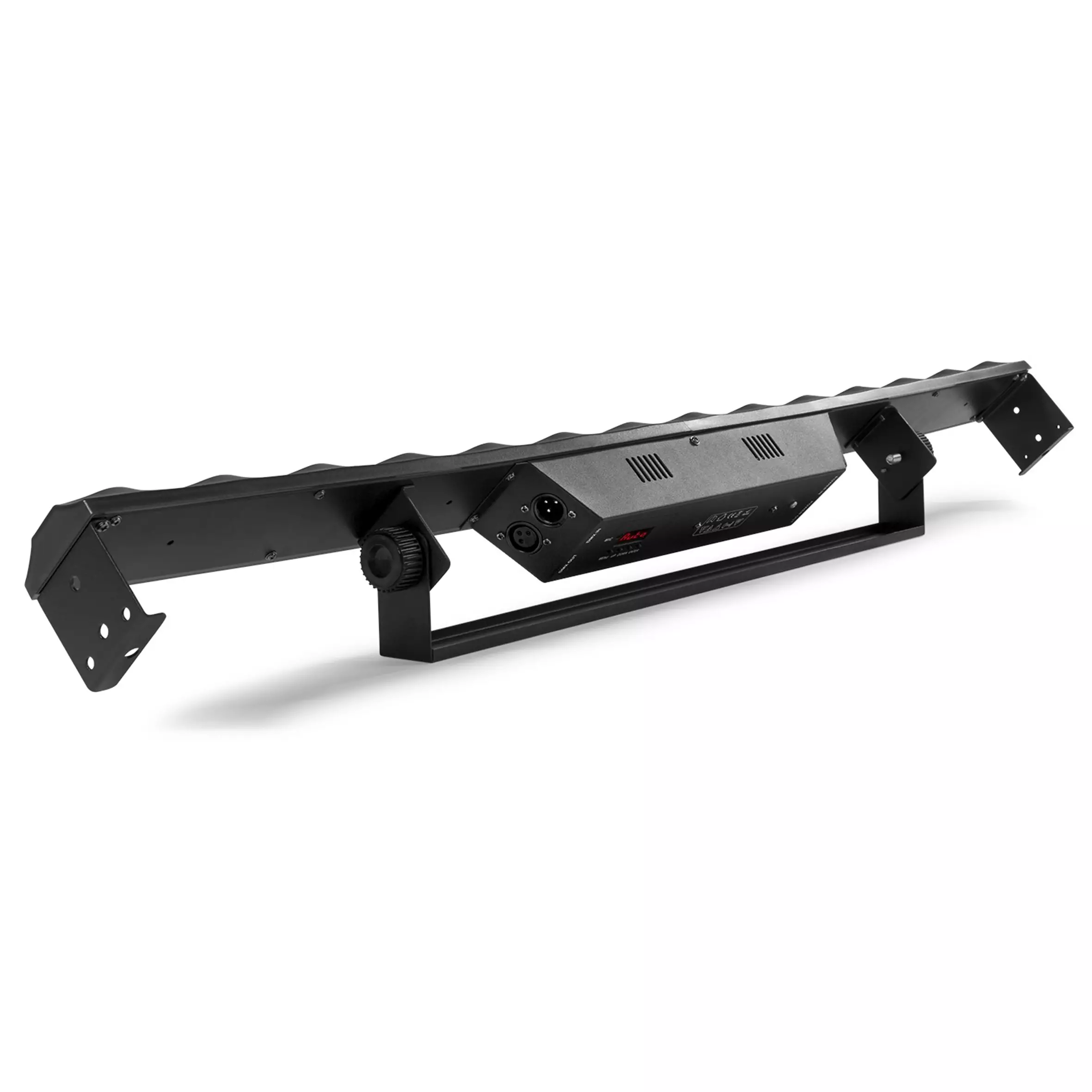

- Multifunctional bracket (floor and truss mounting)
- Electronic Dimming: 0 – 100%

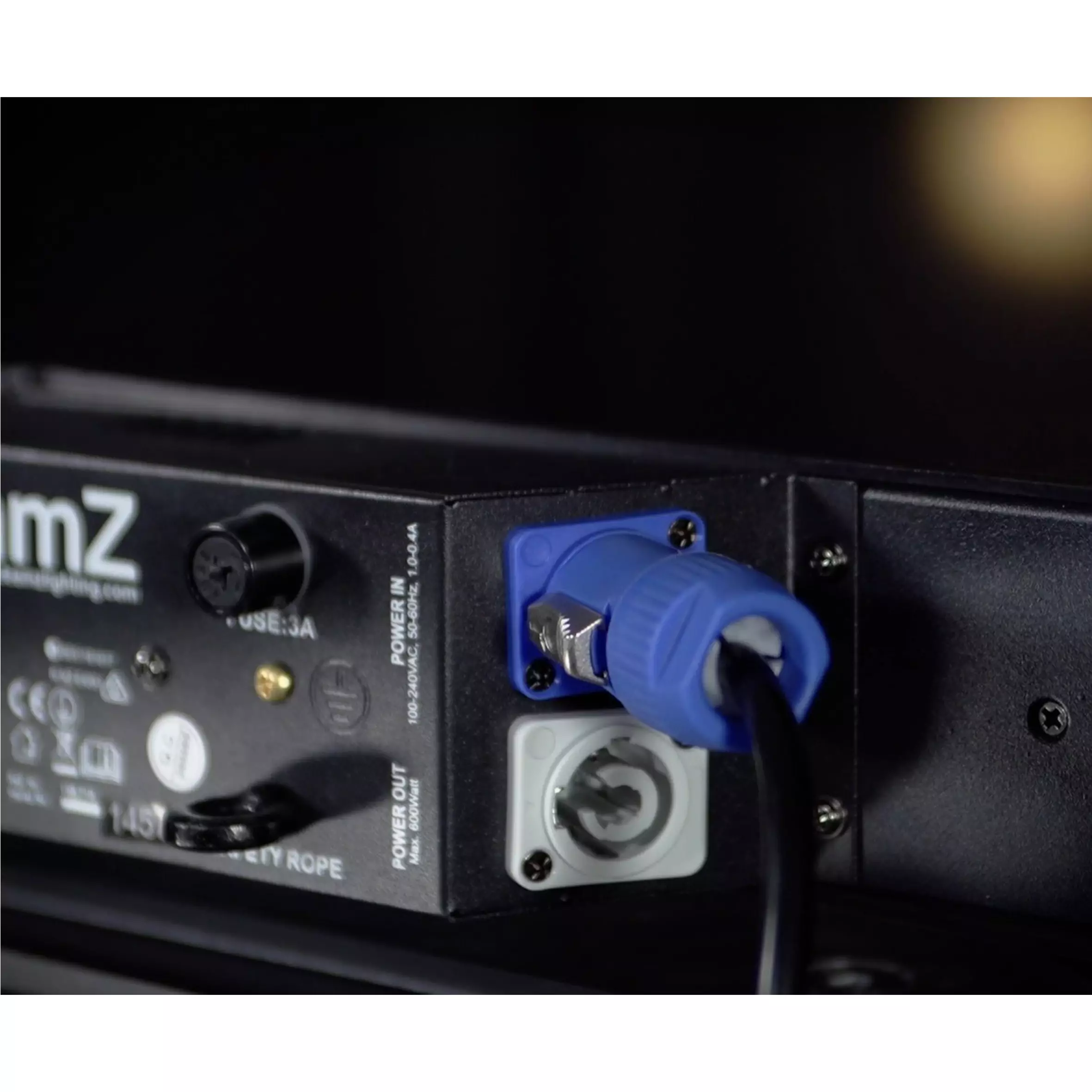

- Power Connector input/output
SPECIFICATIONS:
- Lightsource: Single colour LED, 3-in-1 LED
- LED Colours: Red, Green, Blue, Warm White
- LED Power: 3W
- Quantity of LEDs: 14
- LED Power:Backlight: SMD
- Quantity of Backlight LED’s: 56
- Beam angle (degrees): 5
- Field angle (degrees): 10
- Flash rate per second: 0 – 25Hz
- DMX Channels: 6, 8, 12, 60
- DMX Connector: 3-pin XLR
- Modes: Automatic programs, DMX, Sound to Light
- Power Plug: Power-connector
- Power consumption: 1.0 – 0.4A
- Power Supply: 100-240VAC 50/60Hz
- Dimensions: (L x W x H) 1000 x 75 x 85mm
- Weight: 2.2kg
- Accessories: Mounting bracket, Power Cable
