Description

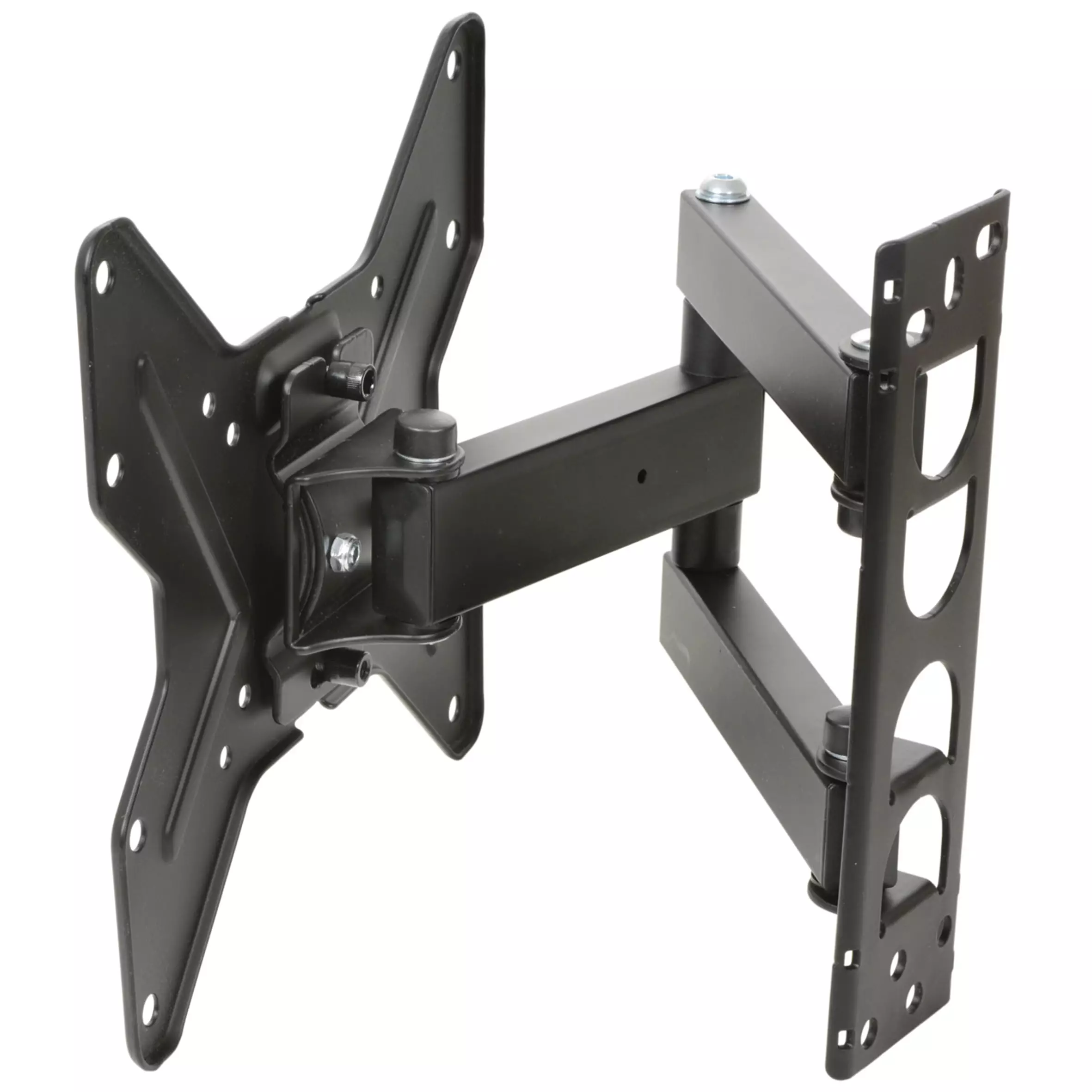

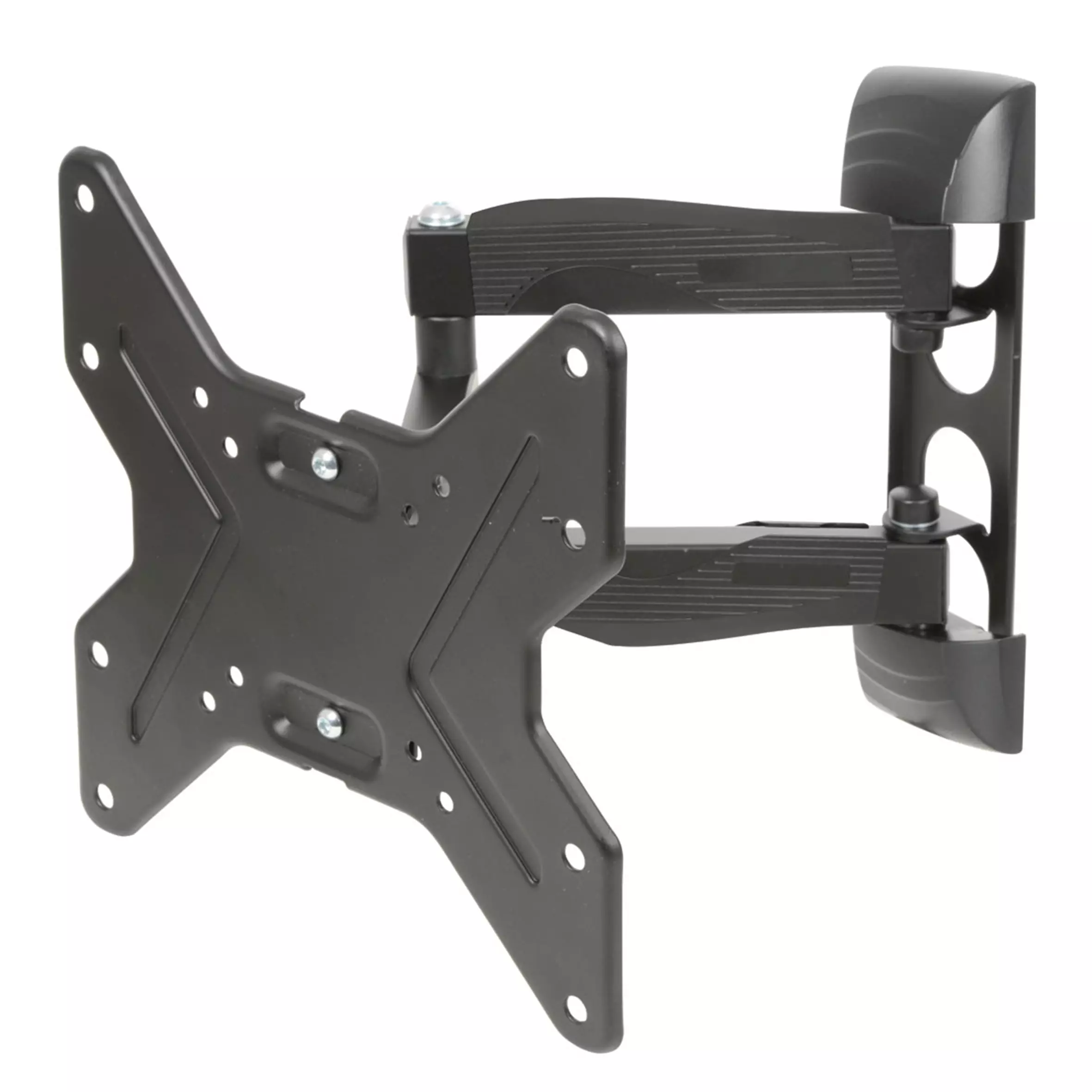

An adjustable rolled steel wall bracket suitable for mounting VESA compatible screens from 26″ to 42″ and up to 25kg in weight.
FEATURES:
- Suitable for mounting LCD or LED screens sized 26″ to 42″
- VESA 75, 100 and 200 hole patterns
- Swivels 180° from wall connection point and 180° from arm
- -5° to 10° tilt mechanism
- Locking screws for safety
- Installation hardware included
SPECIFICATIONS:
- Max. hole spacing: 200 x 200mm
- Distance from wall: 52 – 342mm
- Max. weight load: 25kg
- VESA: 75 x 75, 100 x 100 and 200 x 200
- Wall plate dimensions: 234 x 72mm
- Weight: 1.76kg
- TV fixing screws provided: 4x M4 20mm, 4x M5 x 20mm, 4x M6 x 20mm, 4x M8 x 20mm
