Description

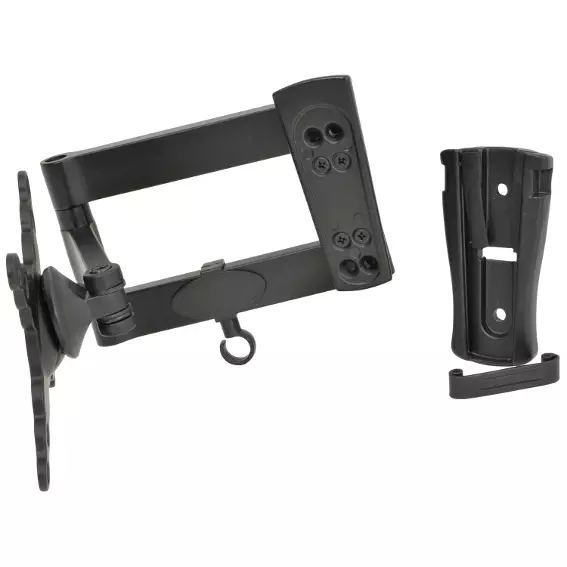

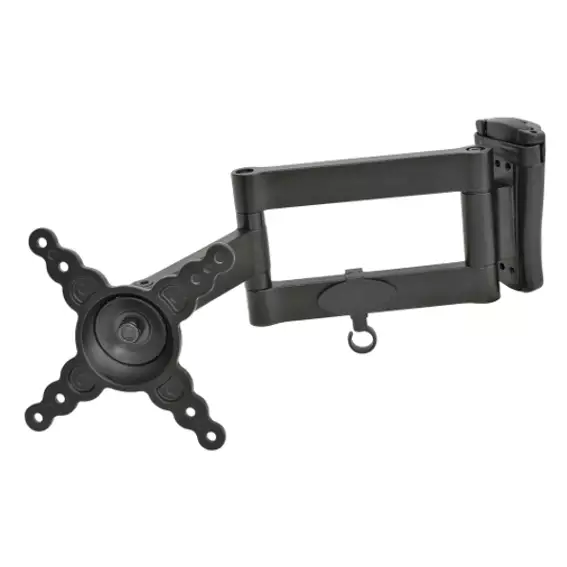

A compact, fully adjustable, double arm steel wall bracket suitable for mounting screens from 13″ up to 40″. Bracket detaches from wall mount for easy installation.
FEATURES:

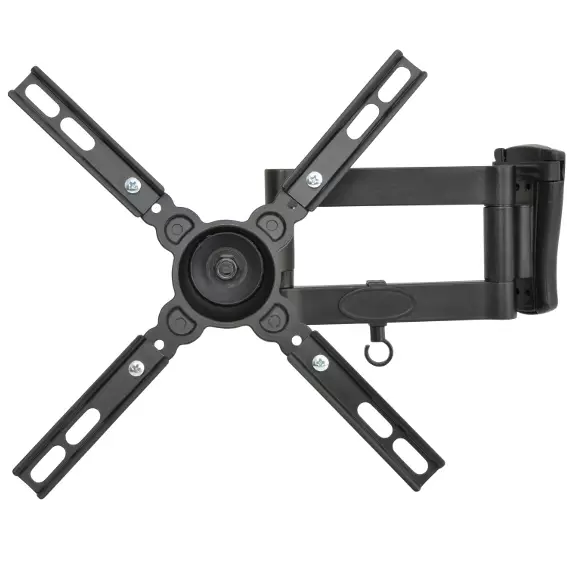

- VESA 200 hole pattern adaptors included
- Suitable for mounting LCD or LED screens sized 13″ to 40″
- Swivels 180° from wall connection point and 180° from arm joint
- VESA 75 and 100 hole patterns
- -5° to 15° tilt mechanism
- Built-in lock for safety and stability
- Integrated spirit level and cable retainer
- Installation hardware included
SPECIFICATIONS:

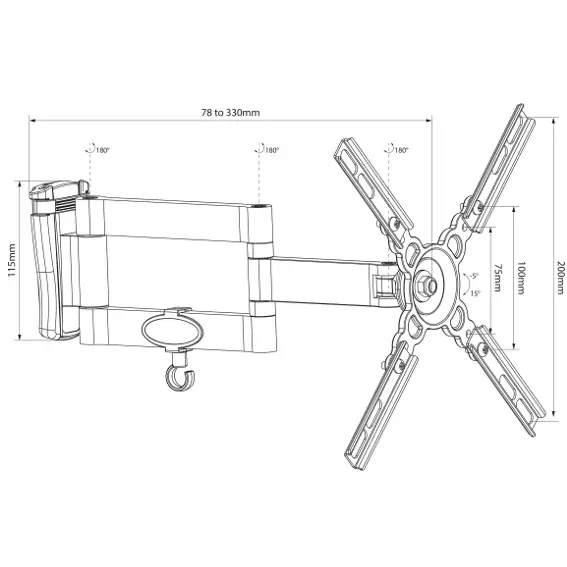

- Max. hole spacing: 200 x 200mm (with adaptor)
- Distance from wall: 78 – 330mm
- Max. weight load: 15kg
- VESA: 75 x 75, 100 x 100 and 200 x 200 with adaptor
- Wall plate dimensions: 57 x 115mm
- Weight: 1.02kg
- TV fixing screws provided: 4 x M4 12mm,4 x M4 25mm,8 x M5 12mm,4 x M5 25mm,4 x M6 16mm,4 x M8 16mm
